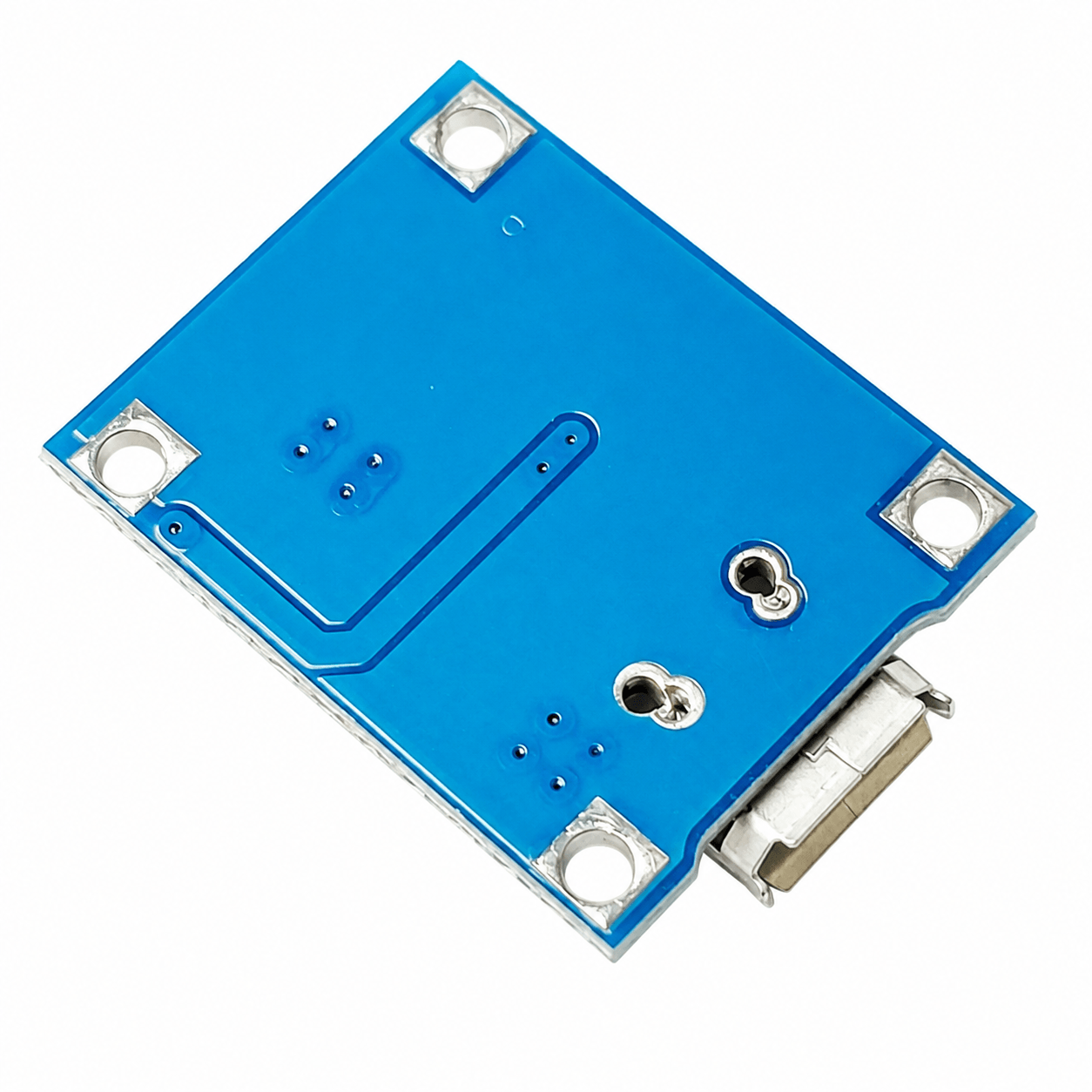

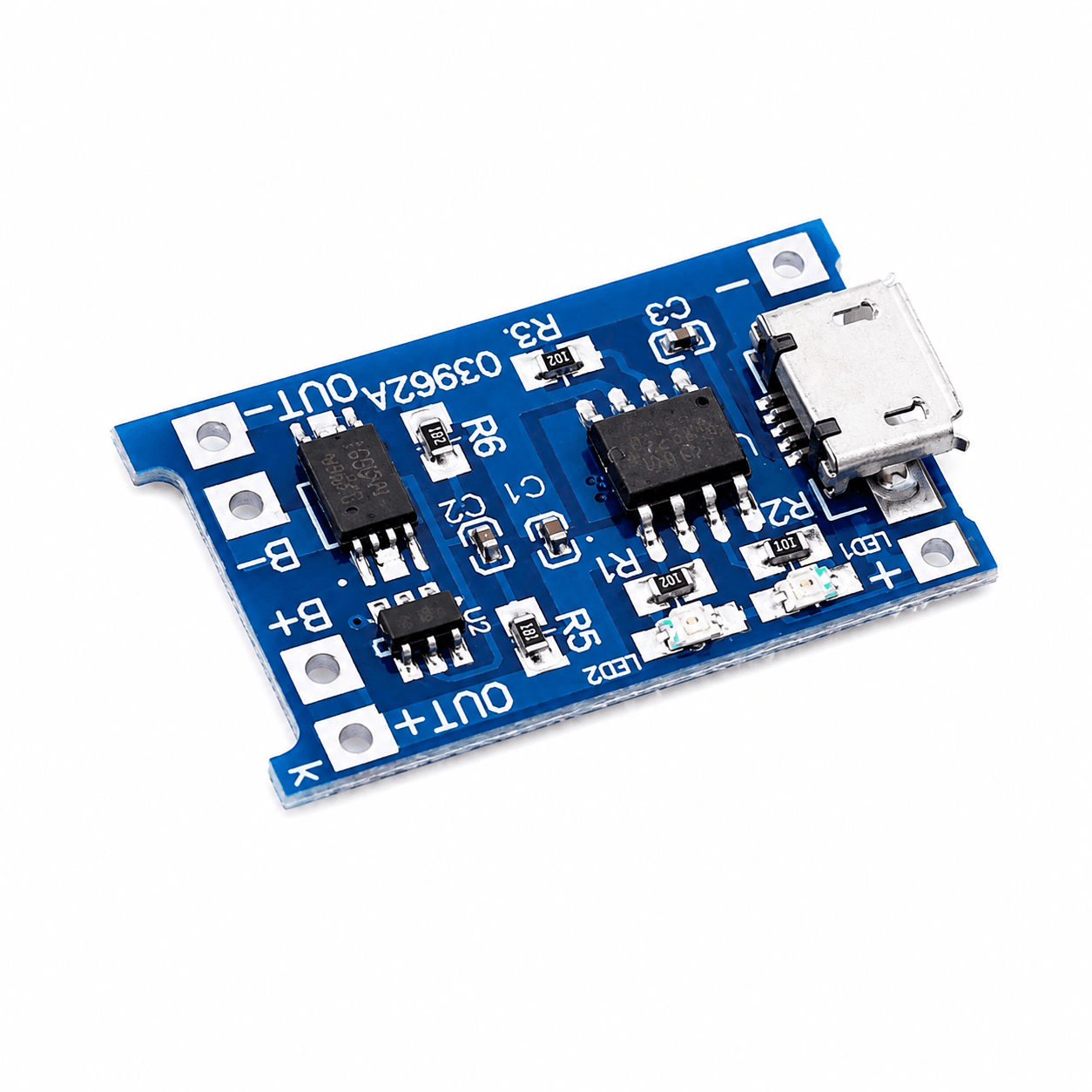

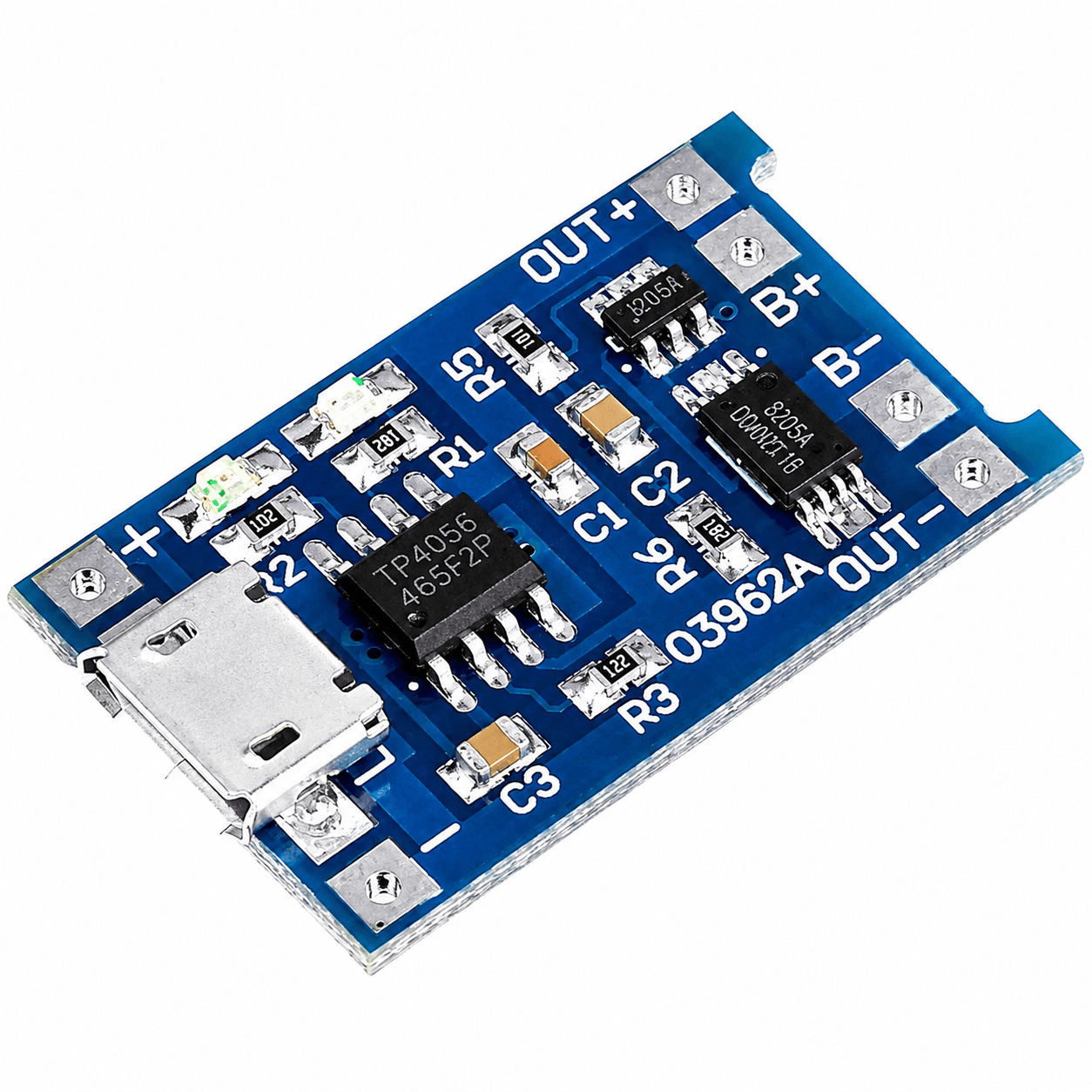

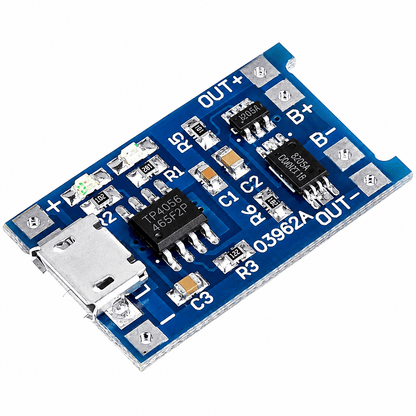

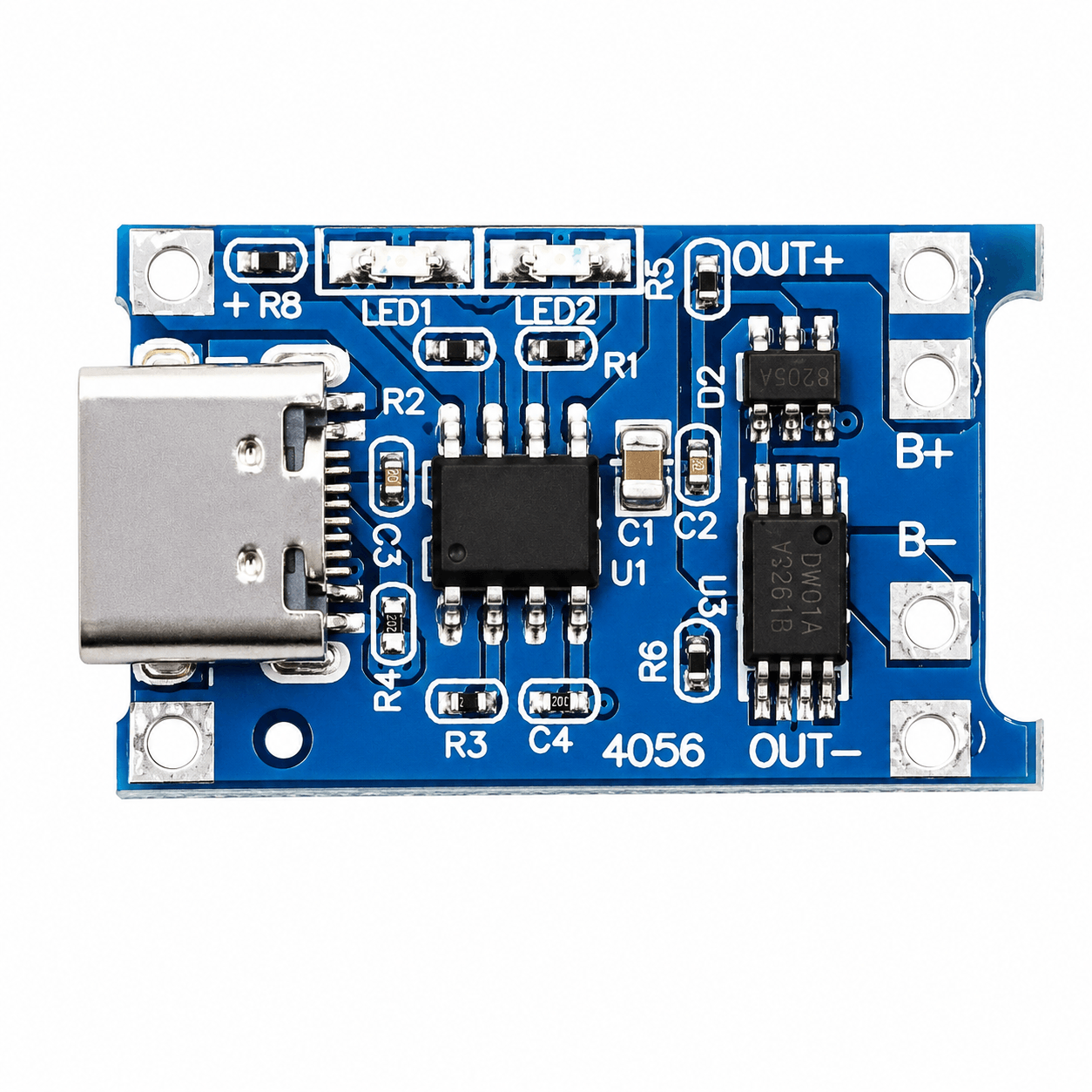

TP4056 - Battery Charging/Protection Module (Micro USB)

SKU: L7FSEF3ZXR
★★★★ ★ ★
4.7 (66 reviews)
The TP4056 Battery Charging/Protection Module (Micro USB) is a compact charging solution designed for single-cell 3.7V Lithium-Ion (Li-ion) and Lithium Polymer (Li-Po) batteries. Built around the TP4056 linear charging IC, along with the DW01A battery protection IC and FS8205A dual MOSFET, the module provides intelligent battery charging while protecting the battery against overcharging, over-discharging, overcurrent, and short circuits. The module...
Rs. 23.00
Rs. 27.00 Rs. 23.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The TP4056 Battery Charging/Protection Module (Micro USB) is a compact charging solution designed for single-cell 3.7V Lithium-Ion (Li-ion) and Lithium Polymer (Li-Po) batteries. Built around the TP4056 linear charging IC, along with the DW01A battery protection IC and FS8205A dual MOSFET, the module provides intelligent battery charging while protecting the battery against overcharging, over-discharging, overcurrent, and short circuits.

The module accepts a 5V input through a Micro USB connector or dedicated input pads and charges the battery using the Constant Current/Constant Voltage (CC/CV) charging algorithm. The default charging current is 1A, which can be adjusted by replacing the onboard programming resistor. Two onboard LEDs indicate the charging status, making it easy to monitor battery charging progress. Compatible with 18650 cells and other single-cell Li-ion/Li-Po batteries, the TP4056 module is widely used in portable electronics, IoT devices, DIY power banks, robotics, and battery-powered embedded systems.

Key Features

  • Based on the TP4056 lithium battery charger IC
  • Charges single-cell 3.7V Li-ion and Li-Po batteries
  • Built-in DW01A battery protection IC
  • FS8205A dual MOSFET protection circuit
  • Micro USB input for convenient charging
  • Constant Current / Constant Voltage (CC/CV) charging
  • Default charging current of 1A
  • Adjustable charging current via programming resistor
  • Overcharge protection
  • Over-discharge protection
  • Overcurrent protection
  • Short-circuit protection
  • Automatic charge termination at 4.2V
  • Charging and full-charge status LEDs
  • Low standby current
  • Compact PCB design
  • Ideal for portable electronics and battery-powered projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Module Type: Lithium Battery Charging and Protection Module
Charging IC: TP4056
Protection IC: DW01A
Protection MOSFET: FS8205A Dual MOSFET
Battery Type: Single-Cell Lithium-Ion / Lithium Polymer (3.7V Nominal)
Battery Charging Voltage: 4.2V ±1%
Input Voltage: 4.5V to 5.5V DC
Input Connector: Micro USB and IN+/IN− Pads
Charging Method: Constant Current / Constant Voltage (CC/CV)
Default Charging Current: 1A
Adjustable Charging Current: Approximately 100mA to 1A (by changing programming resistor)
Charge Termination Current: 10% of Programmed Charging Current
Output Terminals: OUT+, OUT−
Battery Terminals: B+, B−
Protection Functions: Overcharge, Over-discharge, Overcurrent, Short Circuit
Charge Indicator: Red LED (Charging)
Fully Charged Indicator: Blue/Green LED (Charge Complete) (Module dependent)
Operating Temperature: -10°C to +85°C
Module Dimensions: Approximately 28mm × 17mm × 4mm
Mounting Type: PCB Module
Compatibility: 18650 Li-ion Cells, Li-Po Batteries, Arduino Projects, ESP32, STM32, Raspberry Pi, Portable Electronics, DIY Power Banks and Embedded Systems

Additional Resources

TP4056 Charger.PDF

FAQ

1. What batteries can the TP4056 module charge?

The TP4056 module is designed to charge single-cell 3.7V Lithium-Ion (Li-ion) and Lithium Polymer (Li-Po) rechargeable batteries with a full-charge voltage of 4.2V. It is not suitable for charging multiple cells connected in series.

2. Does the TP4056 module include battery protection?

Yes. This version includes a DW01A protection IC and FS8205A dual MOSFET, providing protection against overcharging, over-discharging, overcurrent, and short circuits.

3. Can the charging current be adjusted?

Yes. The default charging current is 1A, but it can be adjusted from approximately 100mA to 1A by changing the onboard programming resistor connected to the TP4056 IC.

4. What do the LEDs on the TP4056 module indicate?

The module includes two status LEDs. The red LED indicates that the battery is charging, while the blue or green LED indicates that charging is complete (LED color may vary depending on the manufacturer).

5. Can the TP4056 module power a project while charging the battery?

Many TP4056 protection modules expose OUT+ and OUT− terminals that allow powering a load while charging. However, for applications where the device must operate continuously during charging, a dedicated power-path/load-sharing circuit is recommended to ensure proper battery charging and reliable operation.
