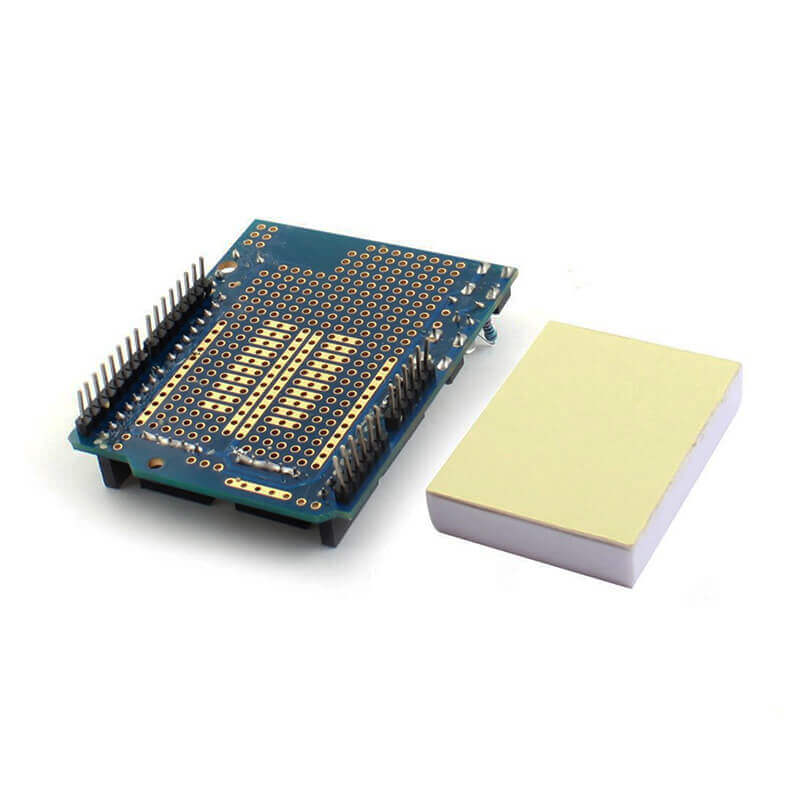

UNO Self Adhesive Prototype Shield with 170 Mini Breadboard

SKU: W8H3VBACLX
The UNO Self-Adhesive Prototype Shield with 170 Mini Breadboard is a versatile prototyping accessory designed for Arduino UNO and compatible development boards. It allows users to quickly build, test, and modify circuits directly on top of their Arduino without the need for a separate breadboard setup. The shield features a removable 170-point self-adhesive mini breadboard mounted at the center, enabling...
Rs. 129.00
Rs. 149.00 Rs. 129.00
Save Rs. 20
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Type: Arduino Prototype Shield
Compatible Board: Arduino UNO R3 and Compatible Boards
Breadboard Type: Self-Adhesive Mini Breadboard
Breadboard Points: 170 Tie Points
Breadboard Dimensions: Approximately 48mm × 34mm
Shield Dimensions: Approximately 70mm × 54mm
Prototyping Grid: 2.54mm (0.1") Pitch
DIP IC Support: Up to 20-Pin DIP ICs
SOIC Support: Up to 14-Pin SOIC Components
LEDs: 2 × User LEDs (Red and Green)
Push Buttons:
1 × Reset Button
1 × General Purpose Button
Power Rails: Available on Board
ICSP Header: Pass-Through Type
Mounting Method: Stackable Shield
PCB Material: FR4 Glass Epoxy
Solder Pads: Gold-Plated
Operating Voltage: Depends on Arduino Board Used
Weight: Approximately 30g
Mounting Type: Through-Hole and SMD Compatible

Additional Resources

Prototype Shield.PDF

FAQ

1. What is the UNO Self-Adhesive Prototype Shield used for?

The shield is used for building, testing, and developing custom circuits directly on top of an Arduino UNO board without requiring a separate breadboard setup.

2. What is the purpose of the included 170-point mini breadboard?

The self-adhesive mini breadboard allows users to prototype circuits without soldering, making it easy to test and modify designs before permanent implementation.

3. Can components be permanently soldered onto the shield?

Yes, the shield includes a dedicated prototyping area with plated through-holes that supports permanent soldering of components and custom circuits.

4. Does the shield provide access to all Arduino UNO pins?

Yes, all Arduino I/O, power, and control pins are brought out to the shield for easy connection and expansion.

5. What additional onboard components are available on the prototype shield?

The shield includes a reset button, an extra user push button, two user LEDs with resistors, power rails, and an ICSP pass-through header for enhanced prototyping flexibility.

View full product details

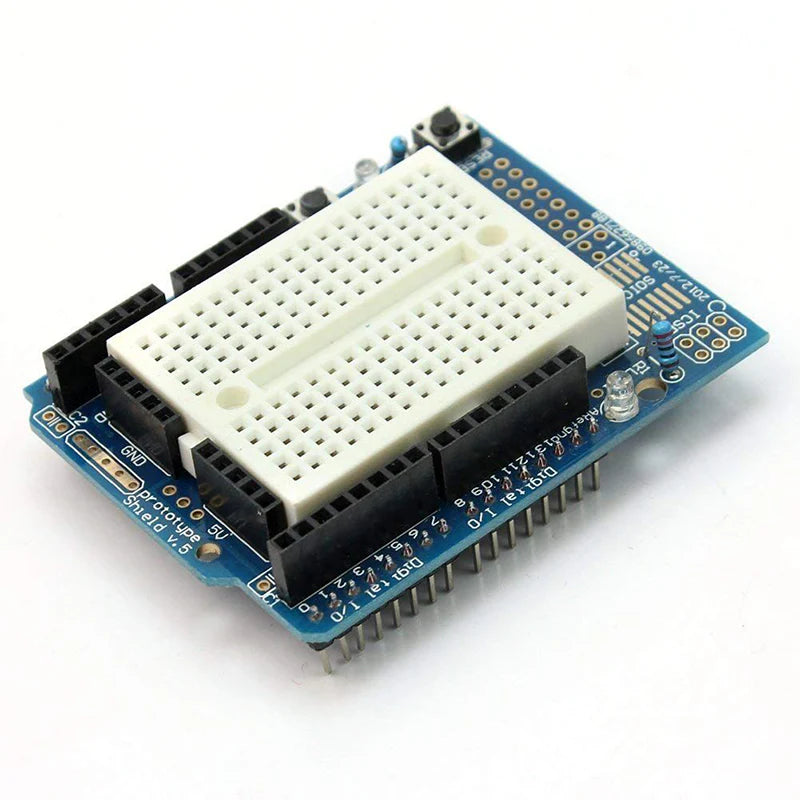

The UNO Self-Adhesive Prototype Shield with 170 Mini Breadboard is a versatile prototyping accessory designed for Arduino UNO and compatible development boards. It allows users to quickly build, test, and modify circuits directly on top of their Arduino without the need for a separate breadboard setup.

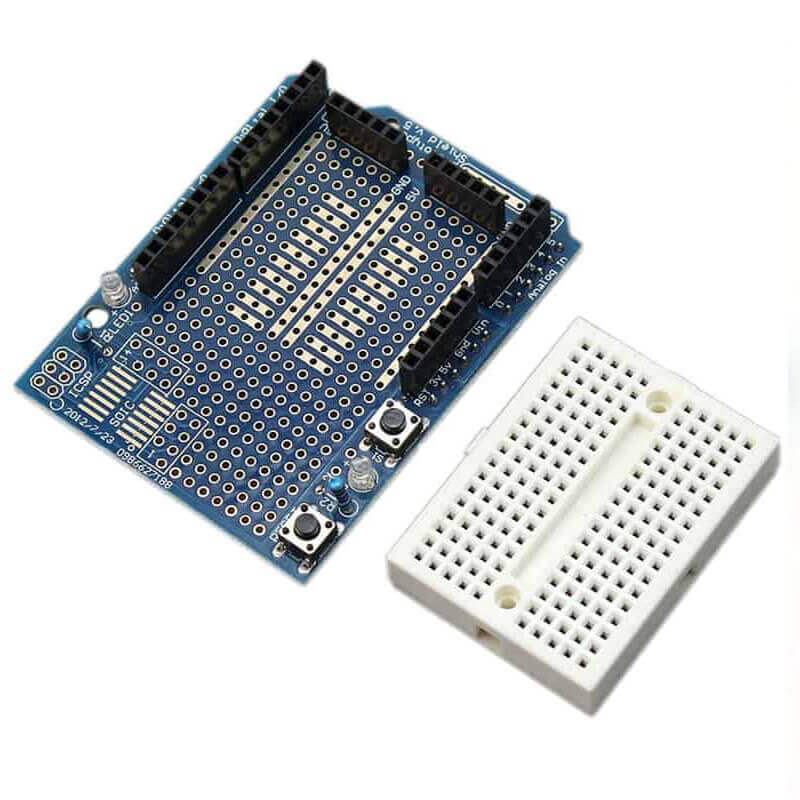

The shield features a removable 170-point self-adhesive mini breadboard mounted at the center, enabling solderless prototyping and rapid circuit development. In addition, the shield provides a large prototyping area with plated through-holes for permanent component soldering. All Arduino I/O pins are conveniently broken out to the shield, making circuit connections simple and organized. It is an ideal solution for students, hobbyists, engineers, and developers working on Arduino-based projects.

Key Features

  • Compatible with Arduino UNO R3 and compatible boards
  • Includes removable 170-point self-adhesive mini breadboard
  • Solderless prototyping and testing capability
  • Large prototyping area for permanent soldered circuits
  • All Arduino I/O pins brought out for easy access
  • Standard 0.1" (2.54mm) prototyping grid
  • Built-in reset button
  • Additional user push button
  • Two onboard general-purpose LEDs with resistors
  • Supports DIP and SOIC package components
  • ICSP pass-through header support
  • Gold-plated solder pads for reliable connections
  • Stackable shield design
  • Ideal for rapid prototyping and educational projects
