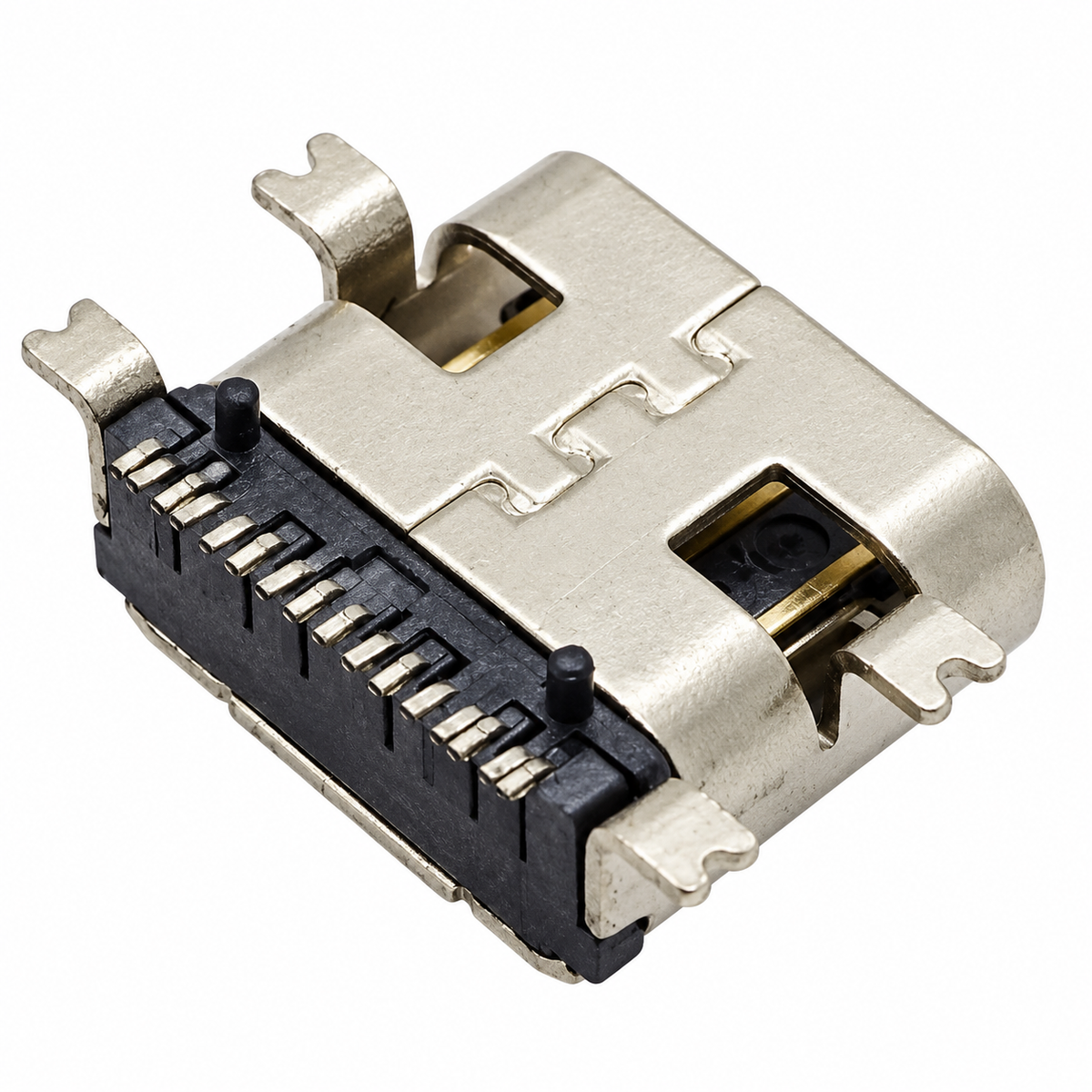

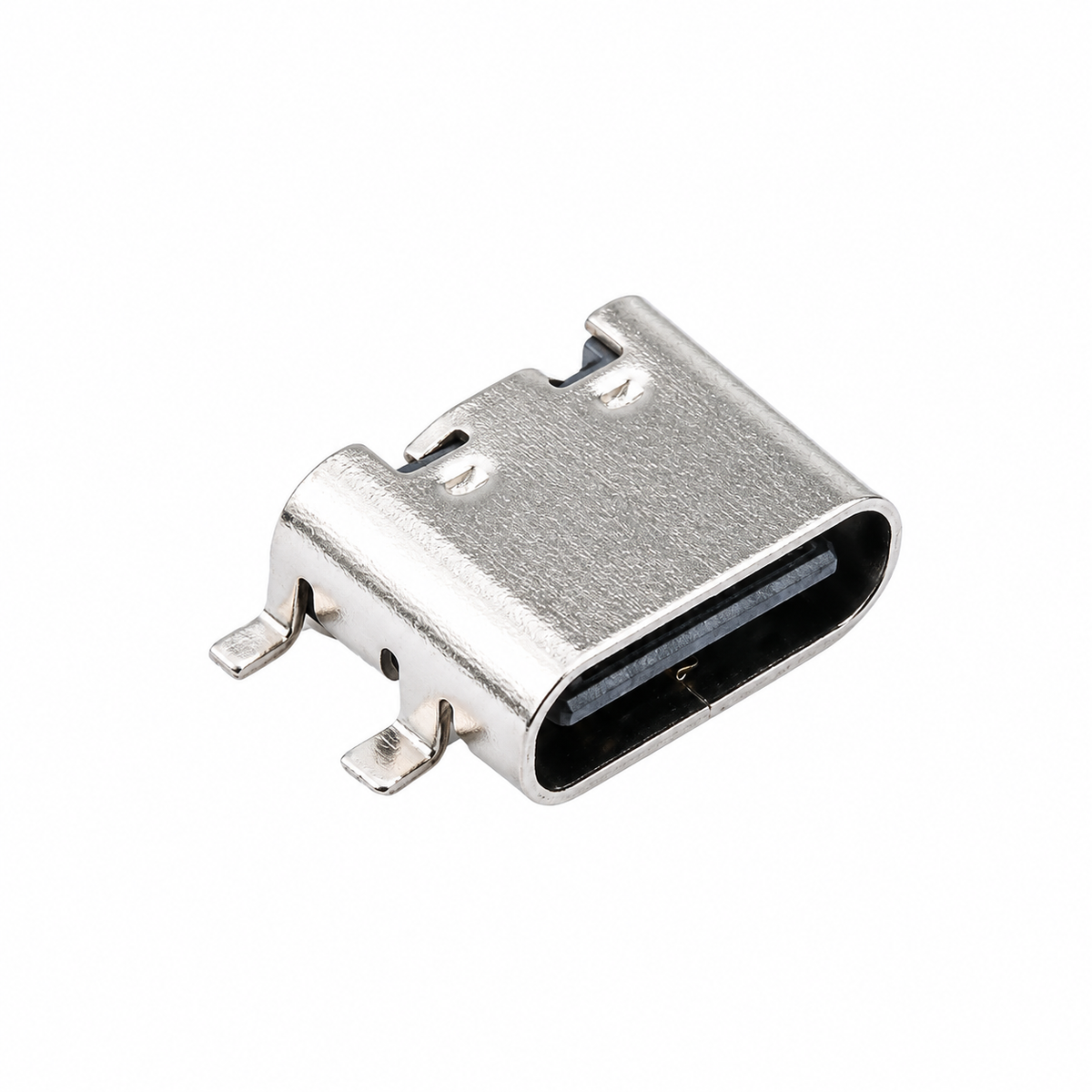

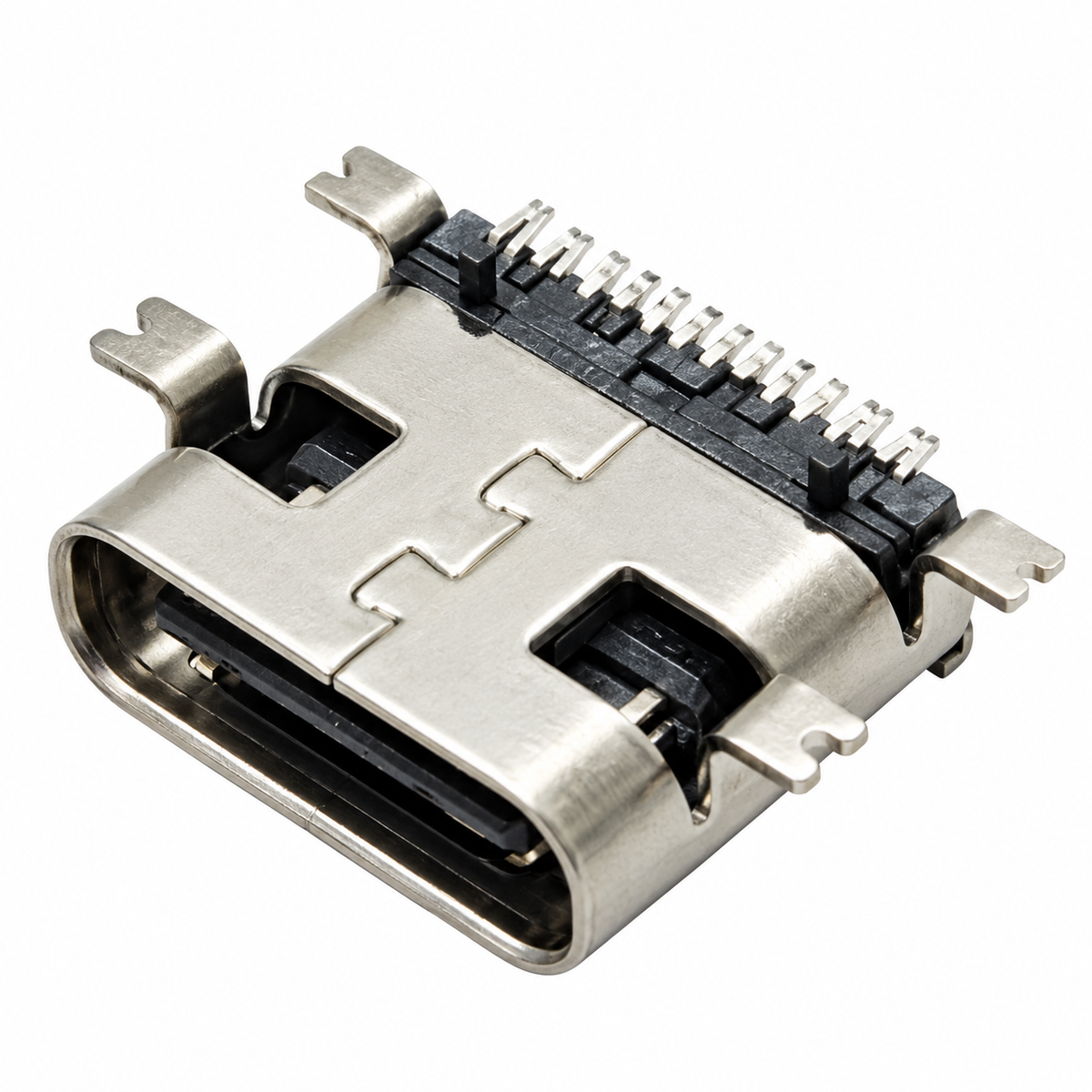

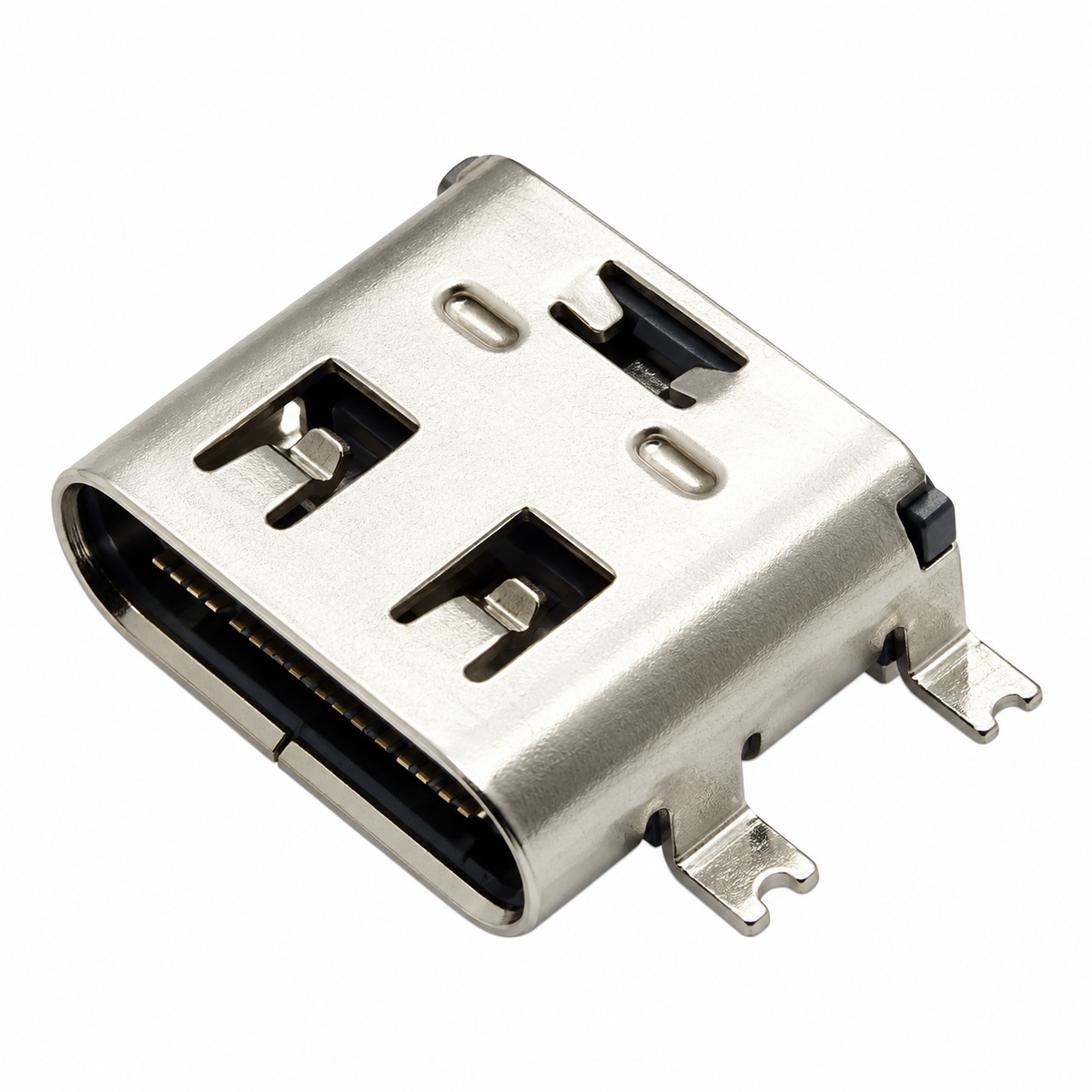

USB 3.1 Type C 16Pin Female Connector SMD - Surface Mount

SKU: 929SJ08BL3
★★★★ ★ ★
4.9 (24 reviews)
The USB 3.1 Type-C 16Pin Female Connector SMD is a compact USB Type-C receptacle designed for surface-mount installation on printed circuit boards. It provides a reversible USB-C interface for custom electronic devices, development boards, charging circuits, and other PCB-based applications. The surface-mount design allows the connector to be placed directly onto compatible PCB pads, making it suitable for compact electronic...
Rs. 10.00
Rs. 12.00 Rs. 10.00
Save Rs. 2 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The USB 3.1 Type-C 16Pin Female Connector SMD is a compact USB Type-C receptacle designed for surface-mount installation on printed circuit boards. It provides a reversible USB-C interface for custom electronic devices, development boards, charging circuits, and other PCB-based applications.

The surface-mount design allows the connector to be placed directly onto compatible PCB pads, making it suitable for compact electronic assemblies and automated PCB manufacturing. Its reversible Type-C interface supports convenient cable insertion from either direction.

With 16 pins, the connector provides multiple electrical contacts for supported USB power, data, and configuration connections. Actual USB 3.1 data performance, charging capability, and available functions depend on the connector pin configuration and the connected circuit.

This connector is suitable for DIY electronics, embedded systems, custom USB devices, development boards, charging projects, and PCB prototyping. The PCB footprint, pinout, mounting dimensions, and electrical specifications should be checked carefully before installation.

Key Features

USB 3.1 Type-C Female Connector
16 Pin USB-C Receptacle
SMD Surface-Mount Design
Reversible USB Type-C Interface
Designed for PCB Mounting
Compact Connector Construction
Suitable for Compact Electronic Devices
Supports Compatible USB Type-C Male Plugs
Suitable for USB Power Connections
Suitable for USB Data Connections
USB 3.1 Application Support
Ideal for DIY Electronics
Useful for Embedded Systems
Suitable for Development Boards
Ideal for Charging Projects
Useful for Custom USB Devices
Suitable for PCB Prototyping
Ideal for Electronic Repairs
Suitable for Custom Circuit Boards
Easy to Integrate into SMD PCB Assemblies

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Product Name: USB 3.1 Type-C 16Pin Female Connector SMD
Product Type: USB Type-C Female Receptacle
Connector Type: USB Type-C
Gender: Female
Number of Pins: 16
Mounting Type: SMD / Surface Mount
Orientation: Depends on Product Version
Interface: Reversible USB Type-C
USB Standard: USB 3.1 Application Support
Connection Type: USB Type-C Plug and Socket
Installation: Surface-Mount Soldering
PCB Requirement: Compatible SMD Footprint Required
Data Function: Depends on Pin Configuration and Connected Circuit
Power Function: Depends on Connector Rating and Circuit Design
Voltage Rating: Depends on Product Specifications
Current Rating: Depends on Product Specifications
Applications: DIY Electronics, Embedded Systems, Development Boards, Charging Projects, Custom USB Devices, PCB Prototyping, Repairs and Electronic Assemblies
Package Includes: 1 × USB 3.1 Type-C 16Pin Female SMD Connector

Additional Resources

USB 3.1 Type C 16Pin Female Connector SMD.PDF

FAQ

1. What is this USB Type-C connector used for?

It is used to provide a reversible USB Type-C female port on a PCB for compatible power, charging, data, or other supported USB-C functions.

2. What does 16-pin mean?

The connector has 16 electrical contacts. The available USB functions depend on the pin configuration and the circuit connected to the connector.

3. What does SMD mean?

SMD means Surface Mount Device. The connector is designed to be soldered directly onto compatible surface-mount PCB pads.

4. Does it support USB 3.1 data transfer?

It is intended for USB 3.1 applications, but actual data speed depends on the connector configuration, PCB layout, signal routing, and connected USB controller.

5. Can it be used in charging and DIY electronics projects?

Yes. It is suitable for compatible charging circuits, development boards, embedded devices, custom USB equipment, and DIY PCB projects when the electrical and mechanical specifications match.

You May Also Like
