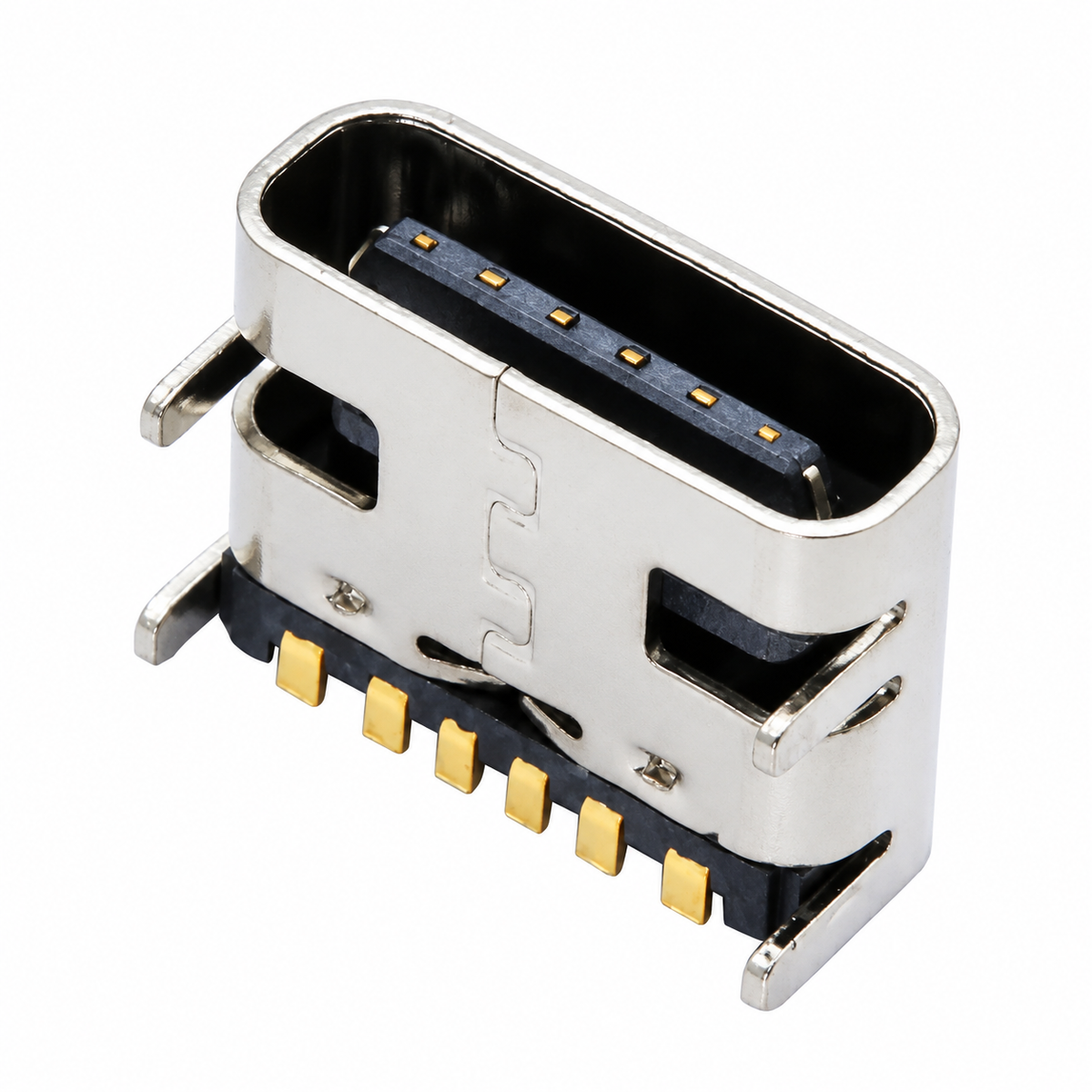

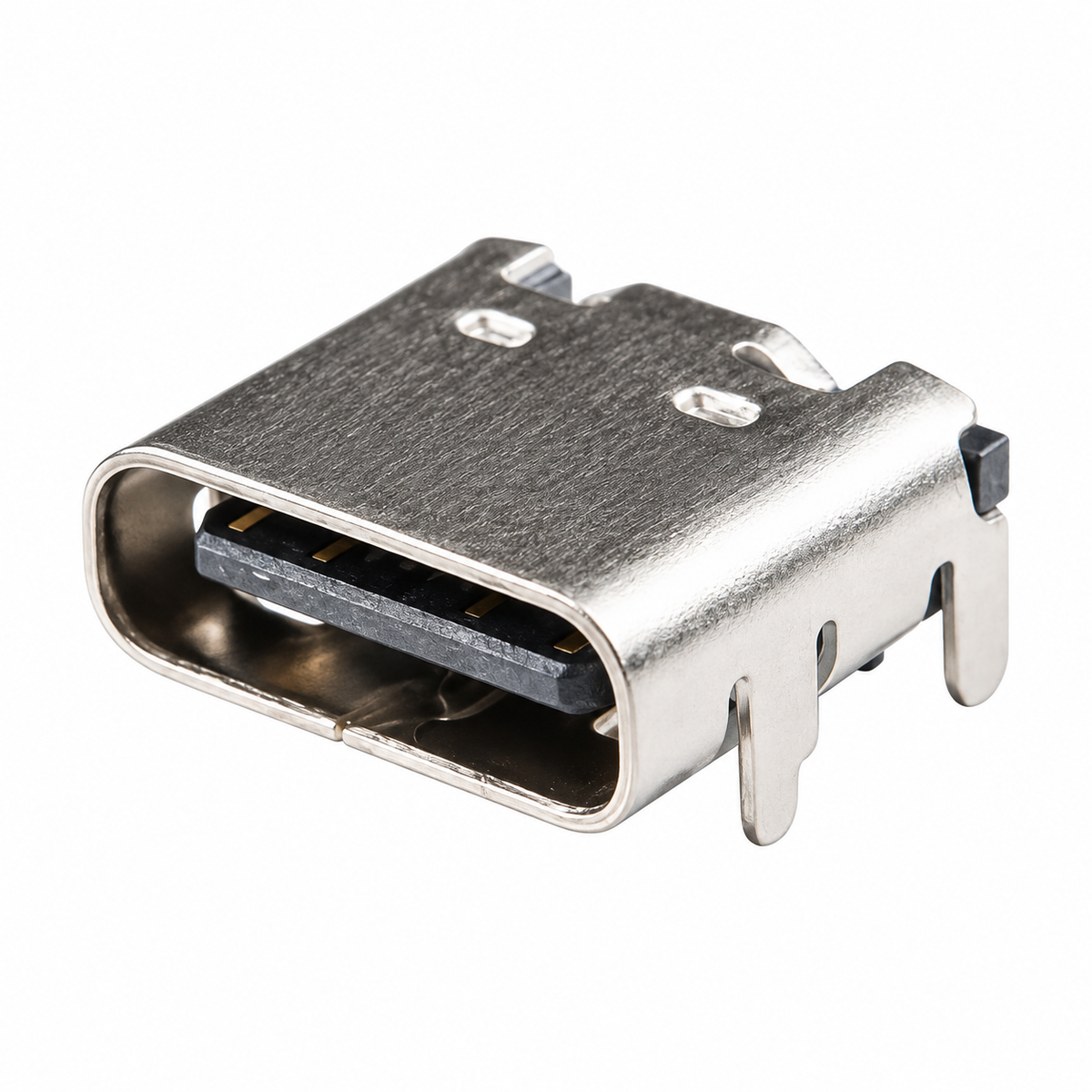

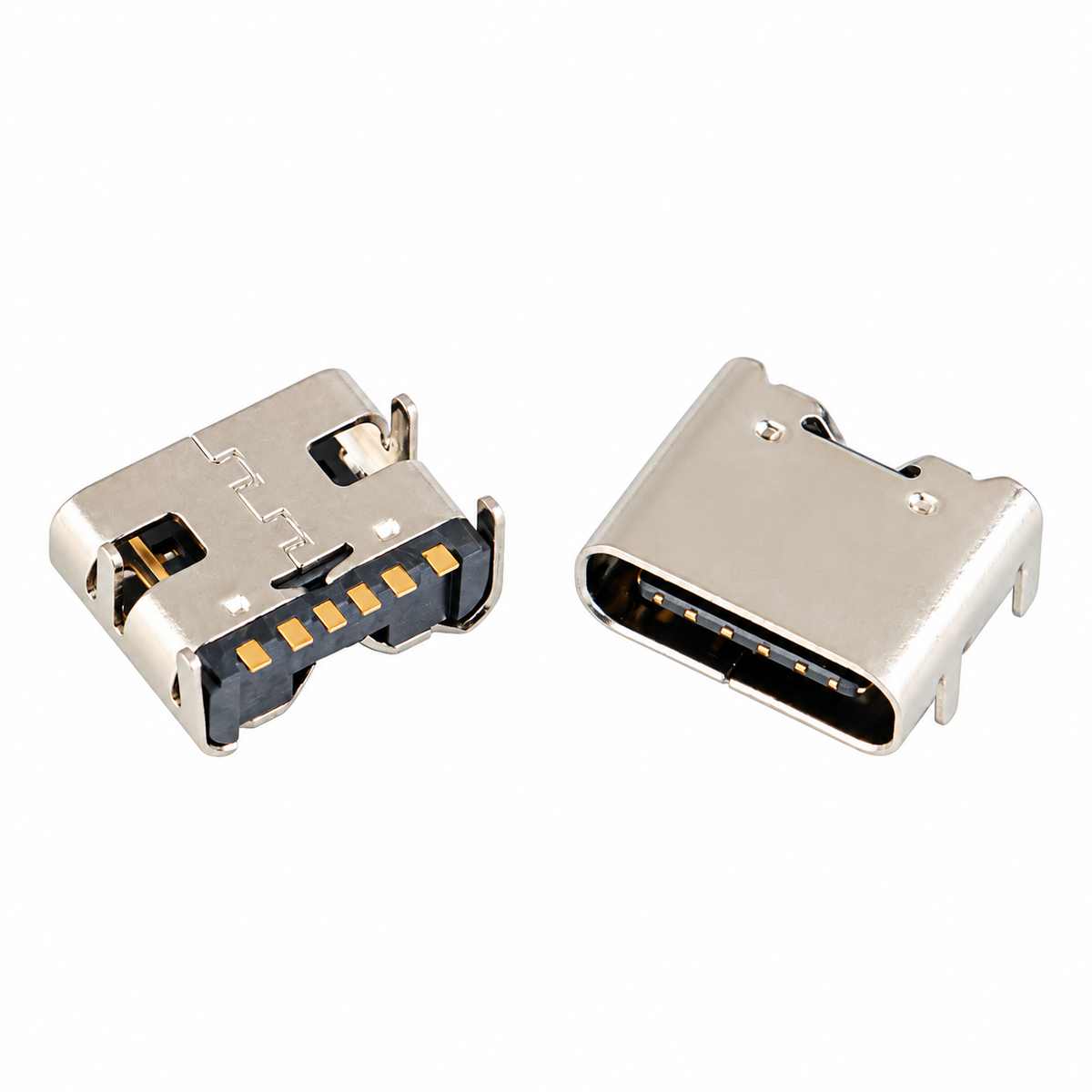

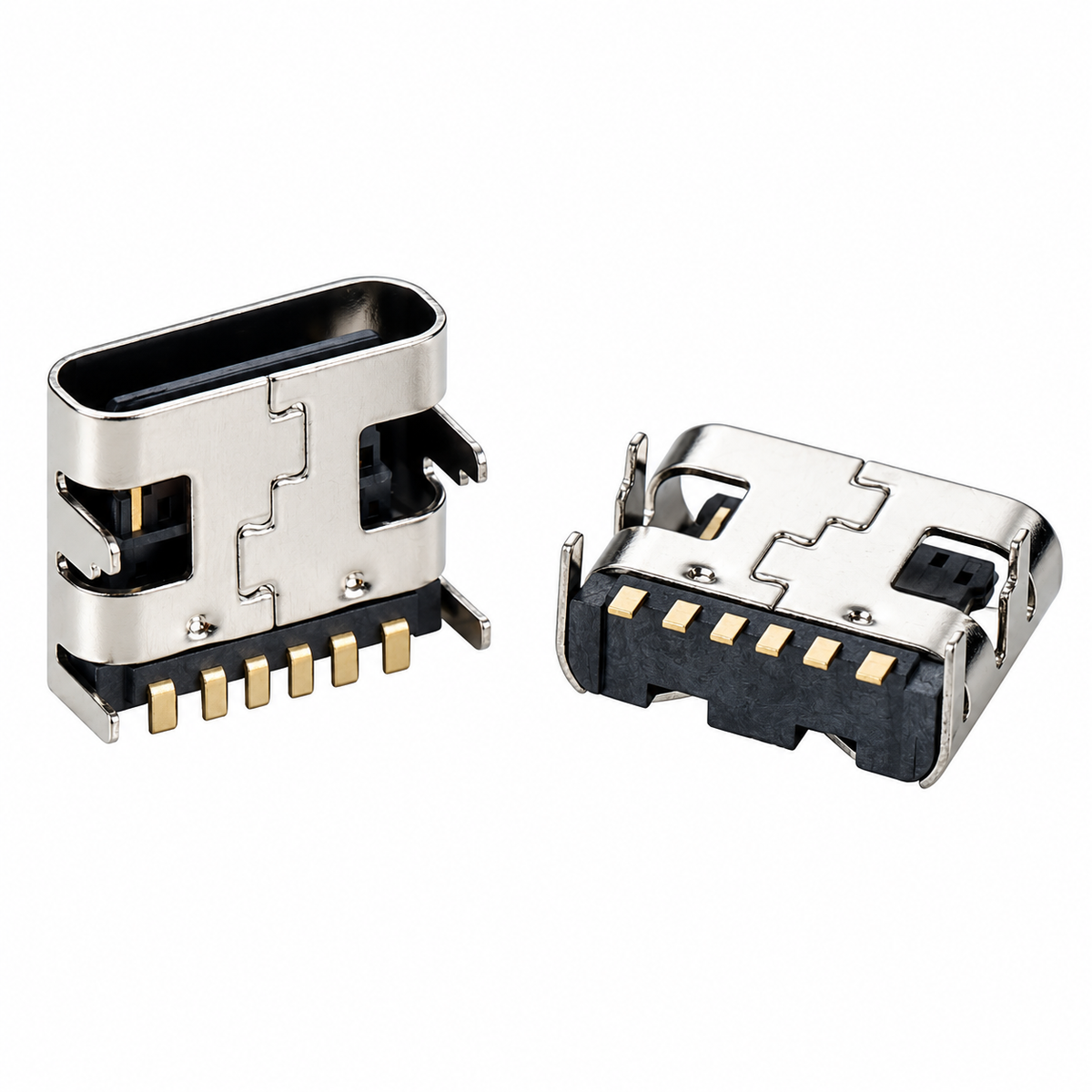

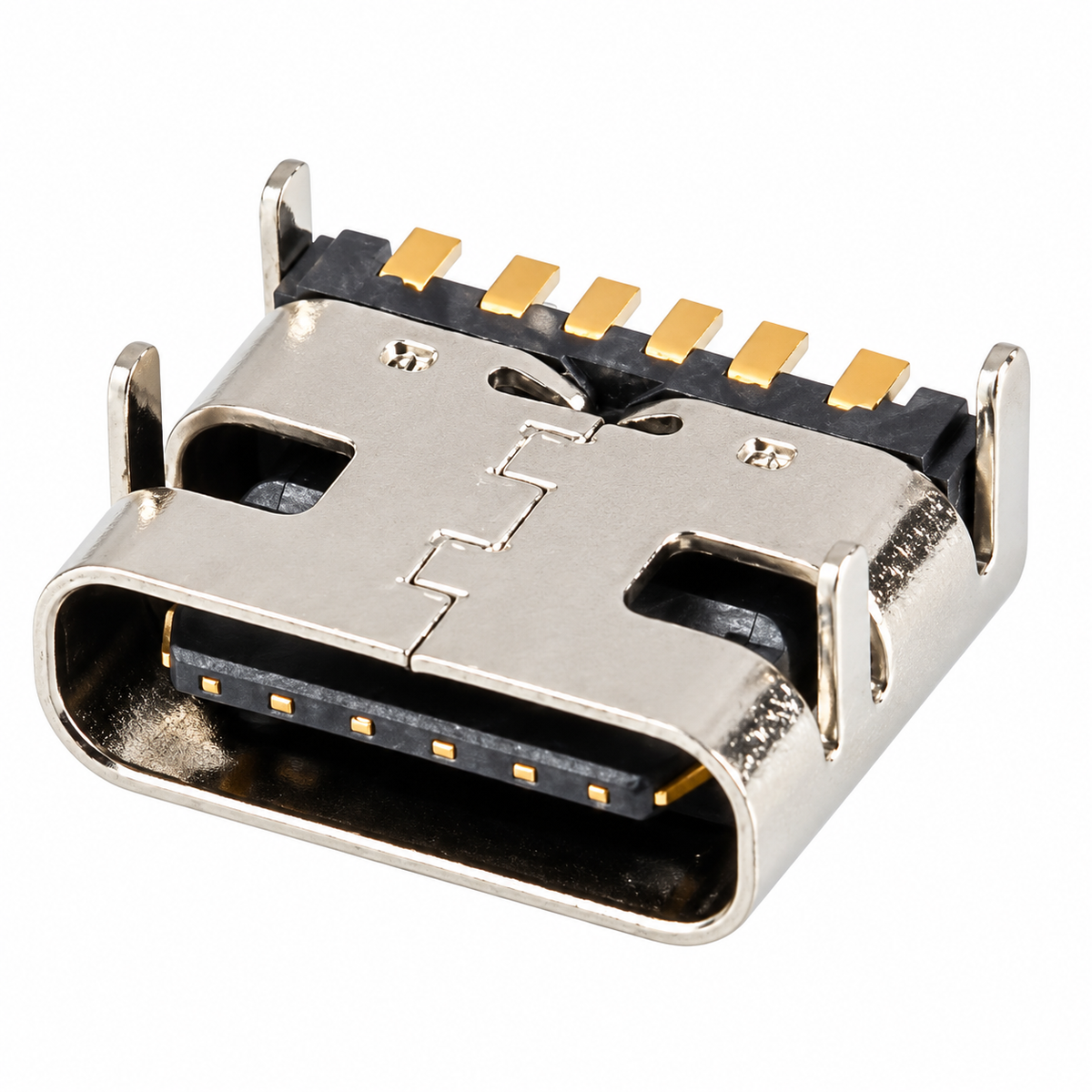

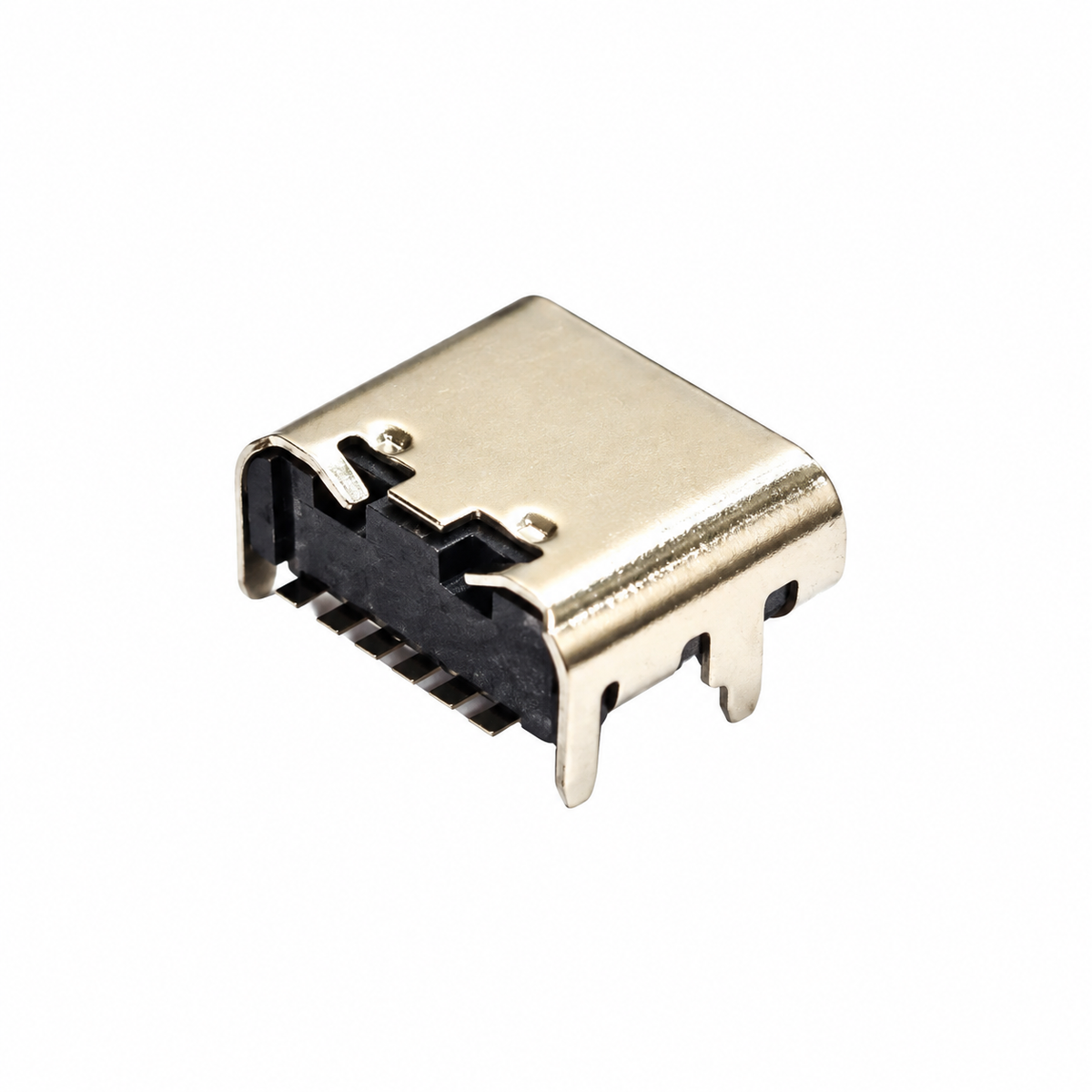

The USB 3.1 Type-C 6Pin Female USB Connector SMD is a compact surface-mount USB Type-C socket designed for installation on compatible printed circuit boards. It provides a modern USB Type-C interface for DIY electronics, embedded systems, development boards, charging circuits, and custom electronic devices.
The 6-pin configuration is suitable for basic USB Type-C power and signal connections, depending on the connector’s internal pin arrangement and circuit design. It can be used to add a USB Type-C port to custom PCBs where space-saving surface-mount components are preferred.
This connector is designed for SMD mounting and requires suitable soldering equipment and PCB pads for installation. Its compact construction makes it useful for small electronic devices, portable projects, custom modules, and prototype circuit boards.
The actual supported functions depend on the pinout, PCB layout, connected circuitry, and USB implementation. Verify the connector footprint, pin configuration, orientation, and electrical requirements before soldering or applying power.
USB 3.1 Type-C Female Connector
6-Pin Configuration
Surface-Mount Device Design
Compact USB Type-C Socket
Designed for PCB Installation
Suitable for Custom PCBs
Useful for DIY Electronics
Ideal for Embedded Systems
Suitable for Development Boards
Useful for Charging Projects
Suitable for USB Power Interfaces
Compact and Space-Saving Design
Suitable for Portable Devices
Useful for Custom Electronic Modules
Ideal for Prototyping
Suitable for SMD Assembly
Requires Proper PCB Footprint
Requires Soldering for Installation
Useful for Makers and Electronics Developers
