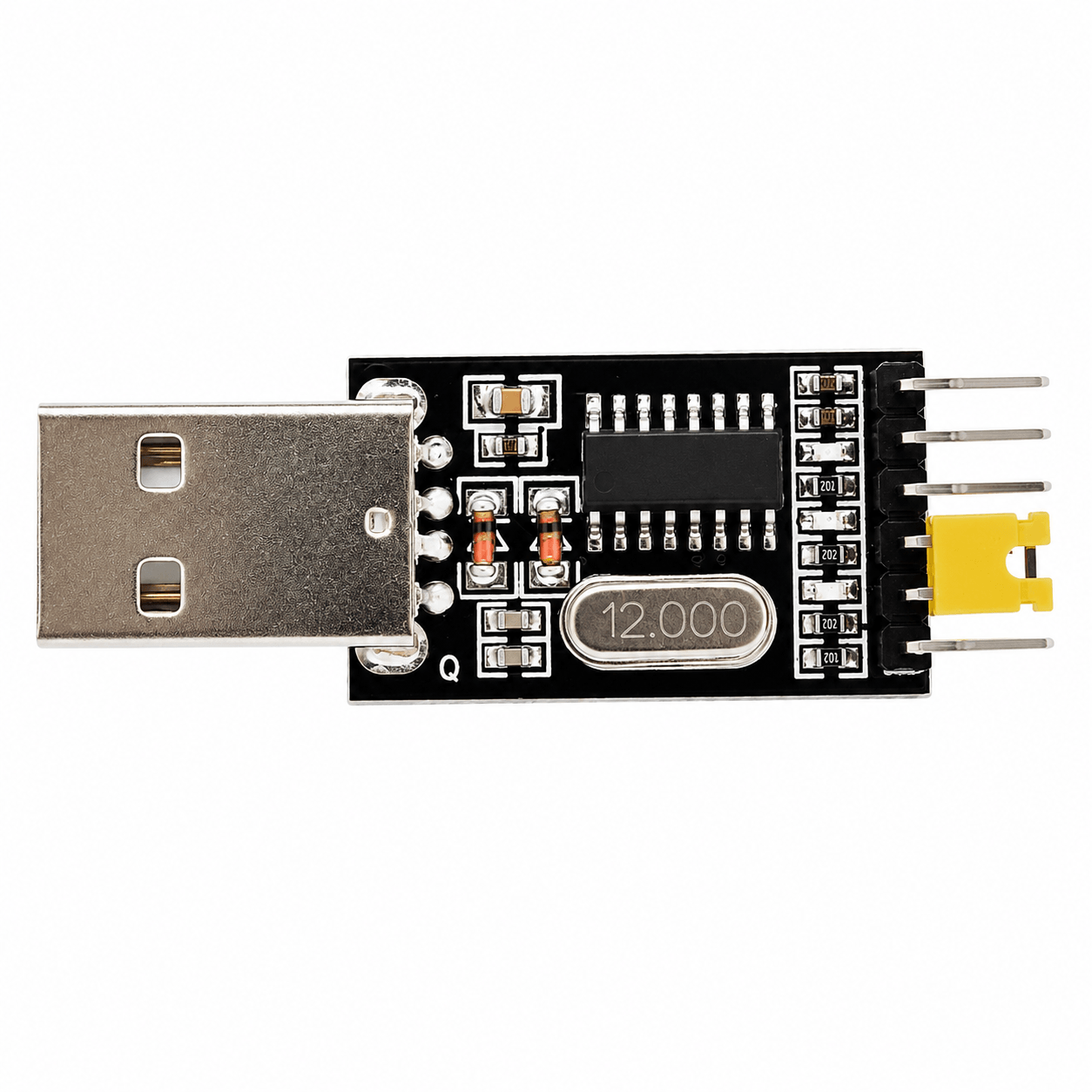

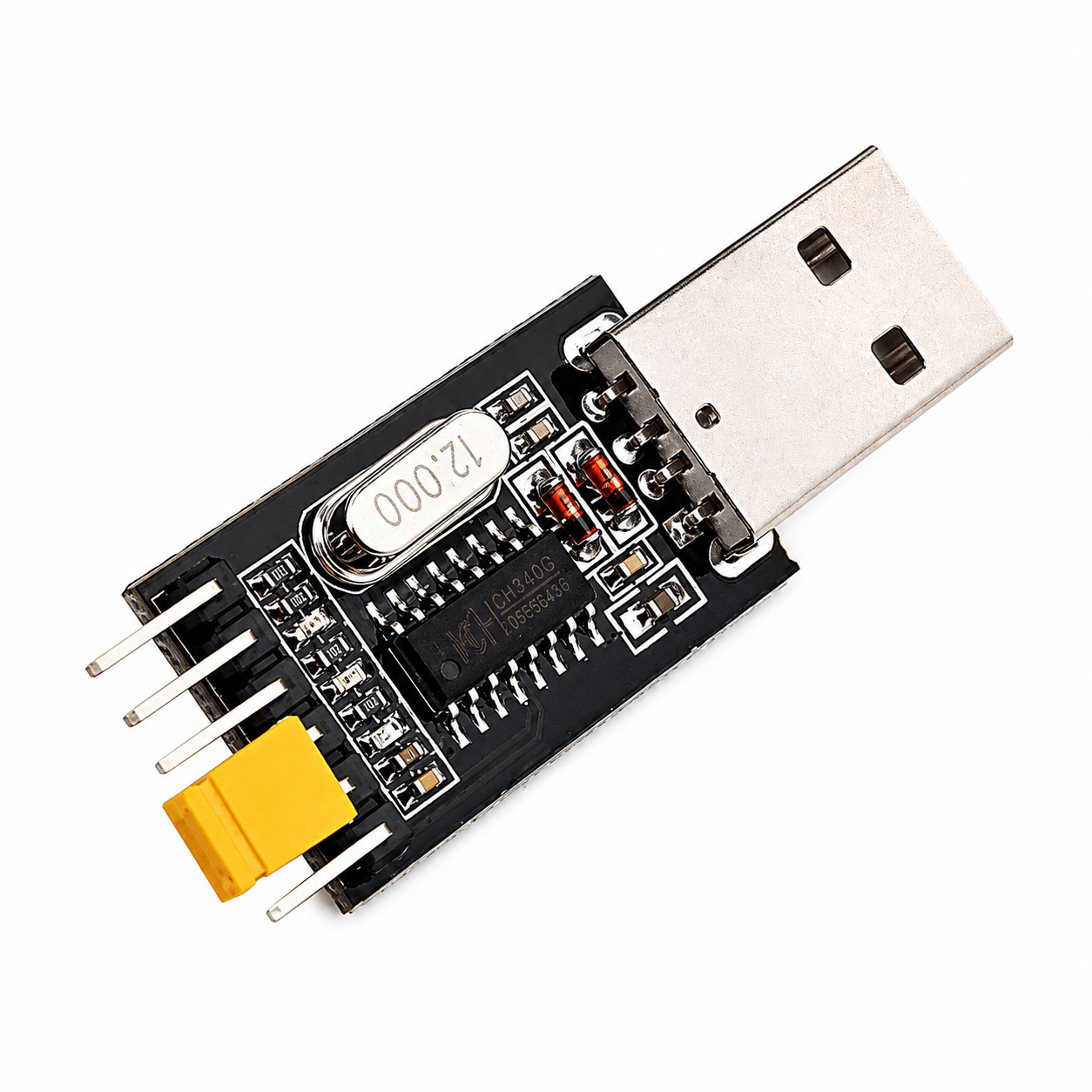

The USB to Serial Converter CH340G is a compact USB-to-UART communication module designed to convert USB data into standard TTL serial communication. Based on the reliable CH340G USB-to-Serial IC, this module enables computers to communicate with a wide variety of microcontrollers, development boards, GPS modules, GSM modules, Wi-Fi modules, Bluetooth modules, and other UART-enabled devices. It is widely used for programming, debugging, firmware uploading, serial communication, and embedded system development.

The module acts as a bridge between a computer's USB port and the UART interface of an electronic device. It converts USB communication into standard serial TX (Transmit) and RX (Receive) signals while supporting full-duplex asynchronous communication. The CH340G IC handles all USB protocol processing internally, allowing seamless serial communication without requiring additional hardware or complex configuration. Most operating systems automatically recognize the module after the appropriate driver is installed.

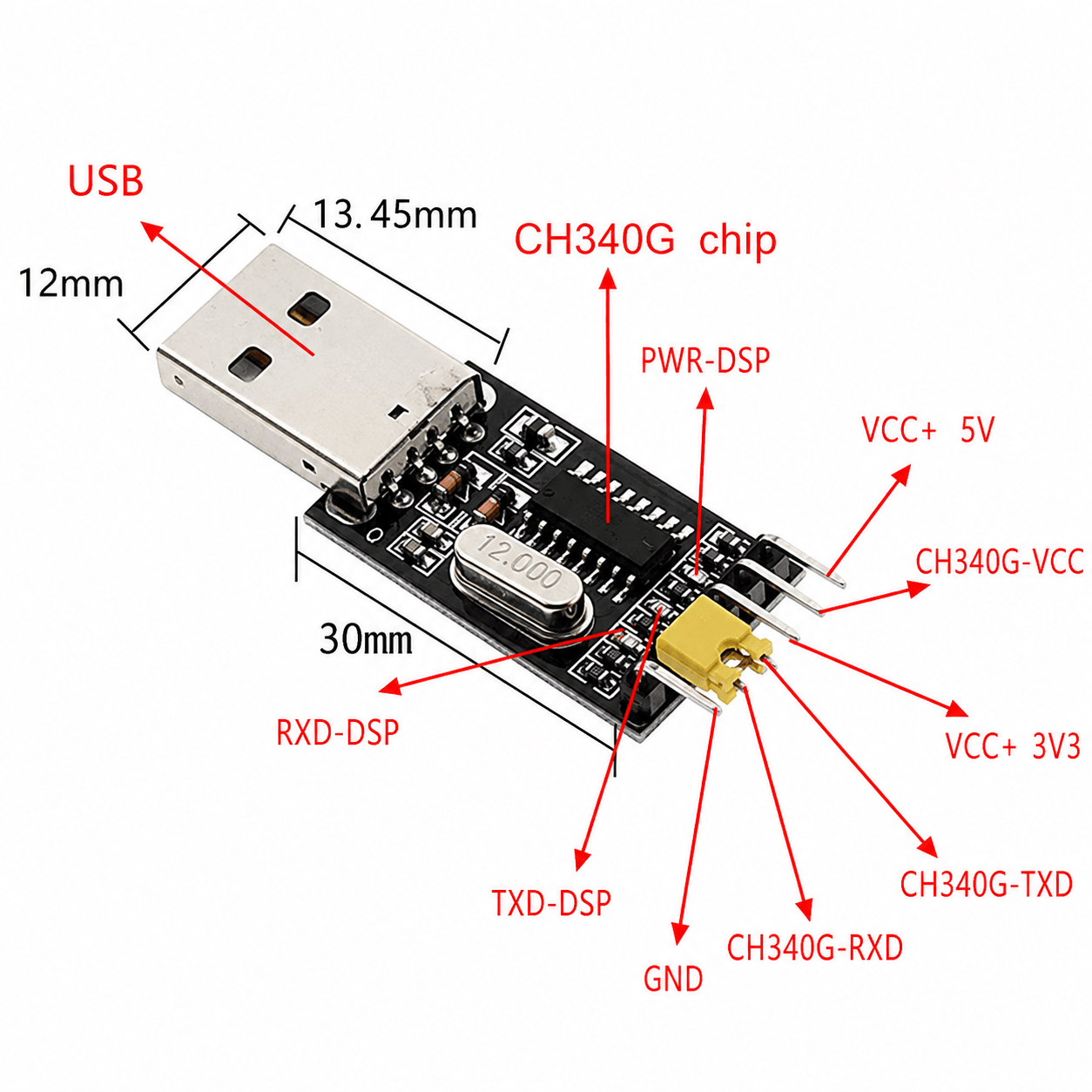

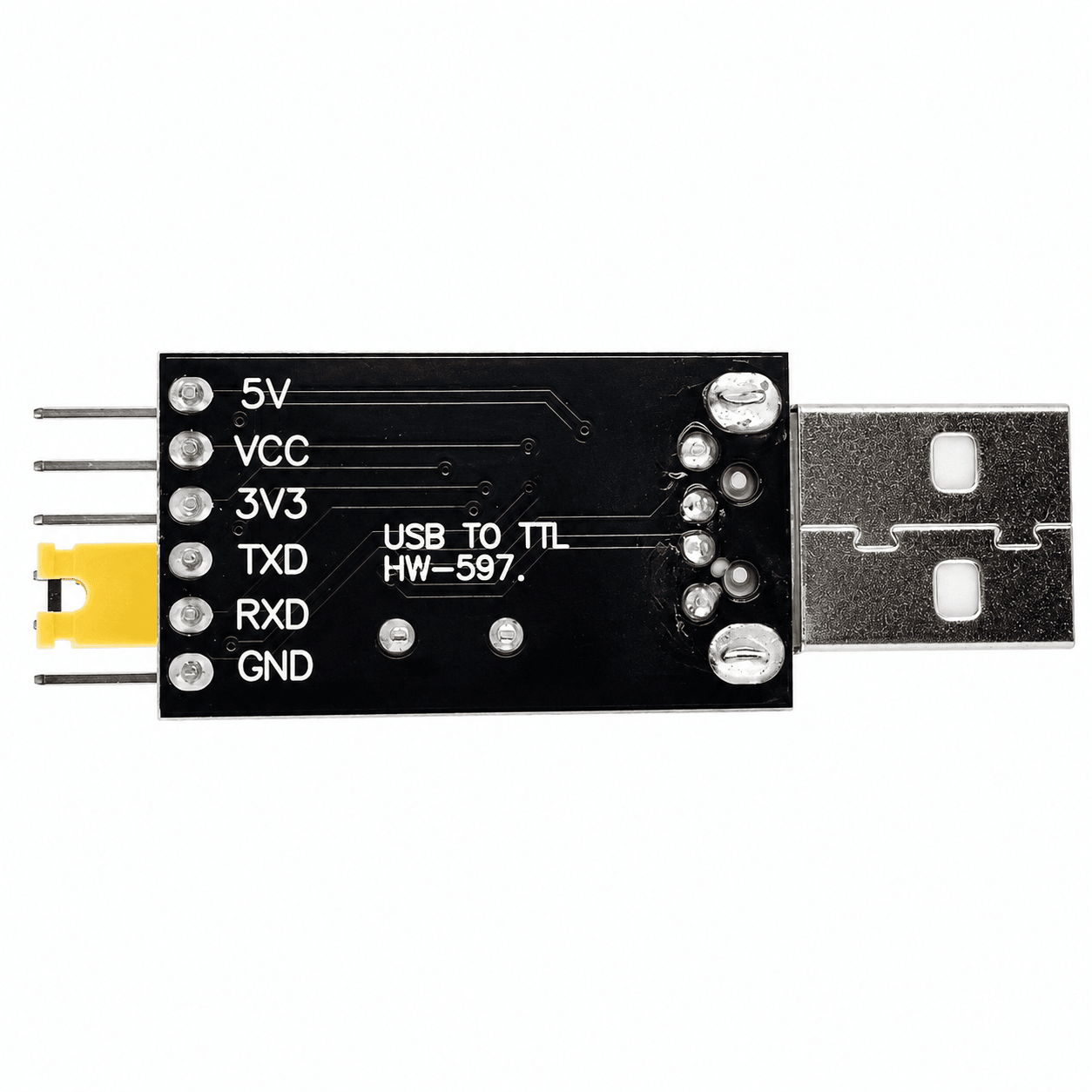

Designed for easy integration, the CH340G module typically provides TXD, RXD, GND, VCC, DTR, and CTS pins for direct connection to compatible microcontrollers and embedded systems. Many versions include onboard status LEDs for power and data transmission, along with selectable 3.3V or 5V logic levels, making the module suitable for programming Arduino Pro Mini boards, ESP8266, ESP32, STM32, AVR, PIC, and numerous other serial devices.

With its compact design, stable performance, high communication speed, and broad operating system compatibility, the USB to Serial Converter CH340G is an essential development tool for students, hobbyists, engineers, and embedded system developers. It provides a simple, reliable, and cost-effective solution for USB-to-UART communication in electronics design, prototyping, and product development.

Key Features

• Based on the CH340G USB-to-UART bridge IC
• Converts USB communication to TTL serial UART
• Full-duplex asynchronous serial communication
• Supports USB 2.0 Full-Speed interface
• Compact and lightweight module
• Reliable and stable communication
• High-speed serial data transfer
• Suitable for programming microcontrollers
• Ideal for firmware uploading and debugging
• Compatible with Arduino Pro Mini boards
• Supports ESP8266 and ESP32 programming
• Compatible with STM32, AVR, PIC, and other UART devices
• Standard TXD and RXD serial interface
• Provides GND and VCC connections
• Many versions include DTR pin for automatic reset
• Power and data status LEDs on most versions
• Available with selectable 3.3V or 5V logic levels (depending on module version)
• Easy driver installation
• Compatible with Windows, Linux, and macOS
• Breadboard-friendly design
• Low power consumption
• Ideal for DIY electronics and embedded system development
