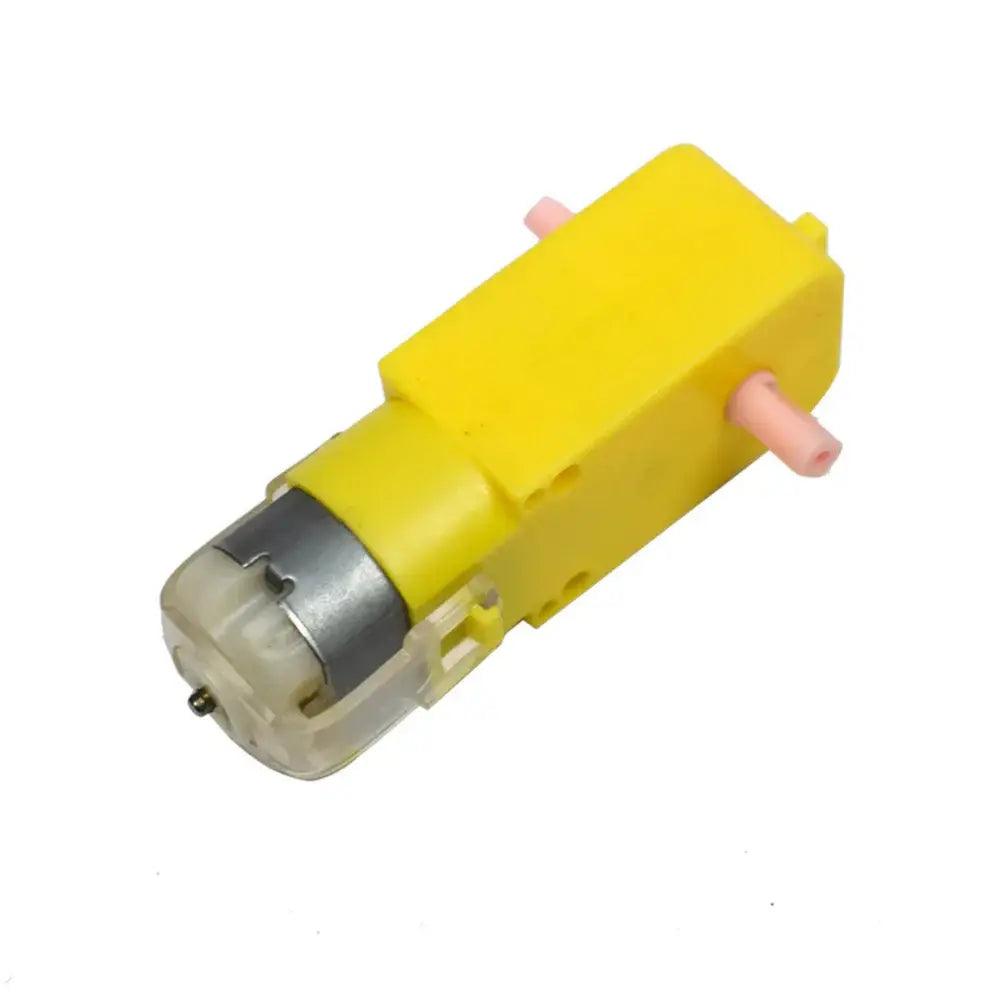

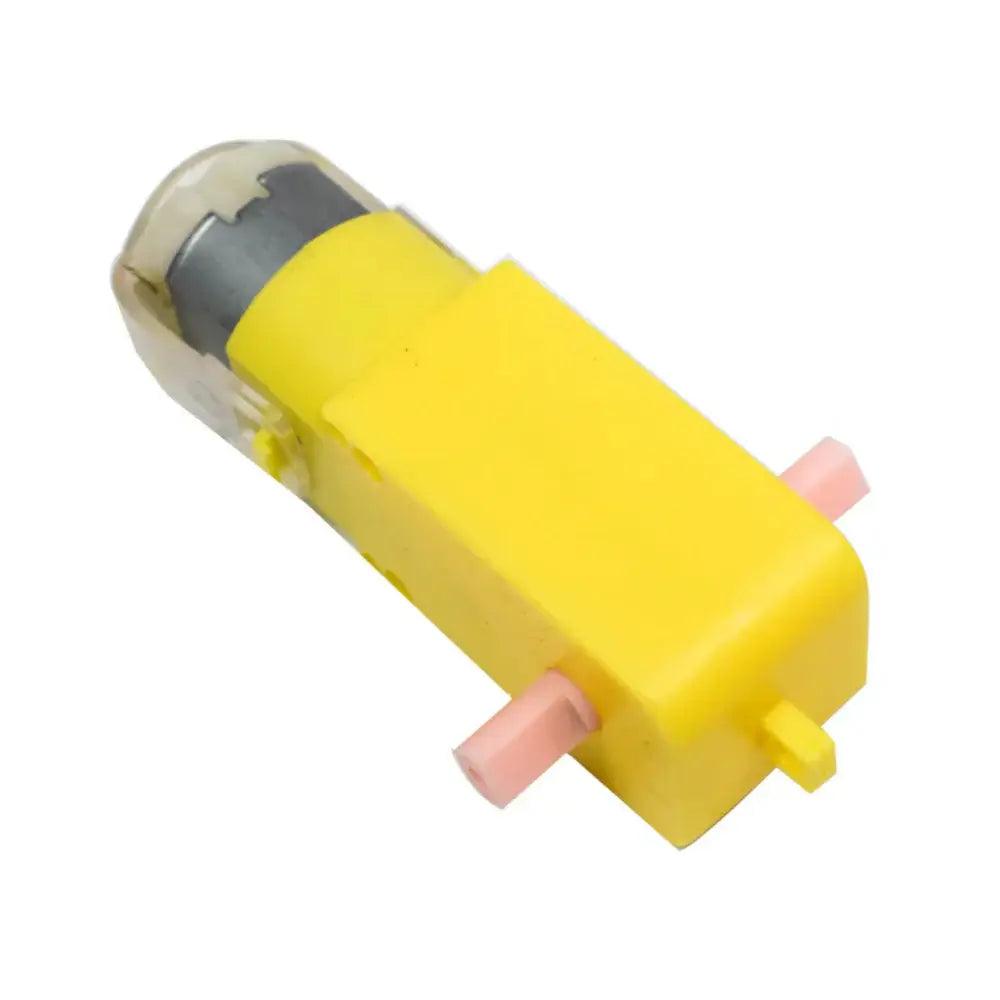

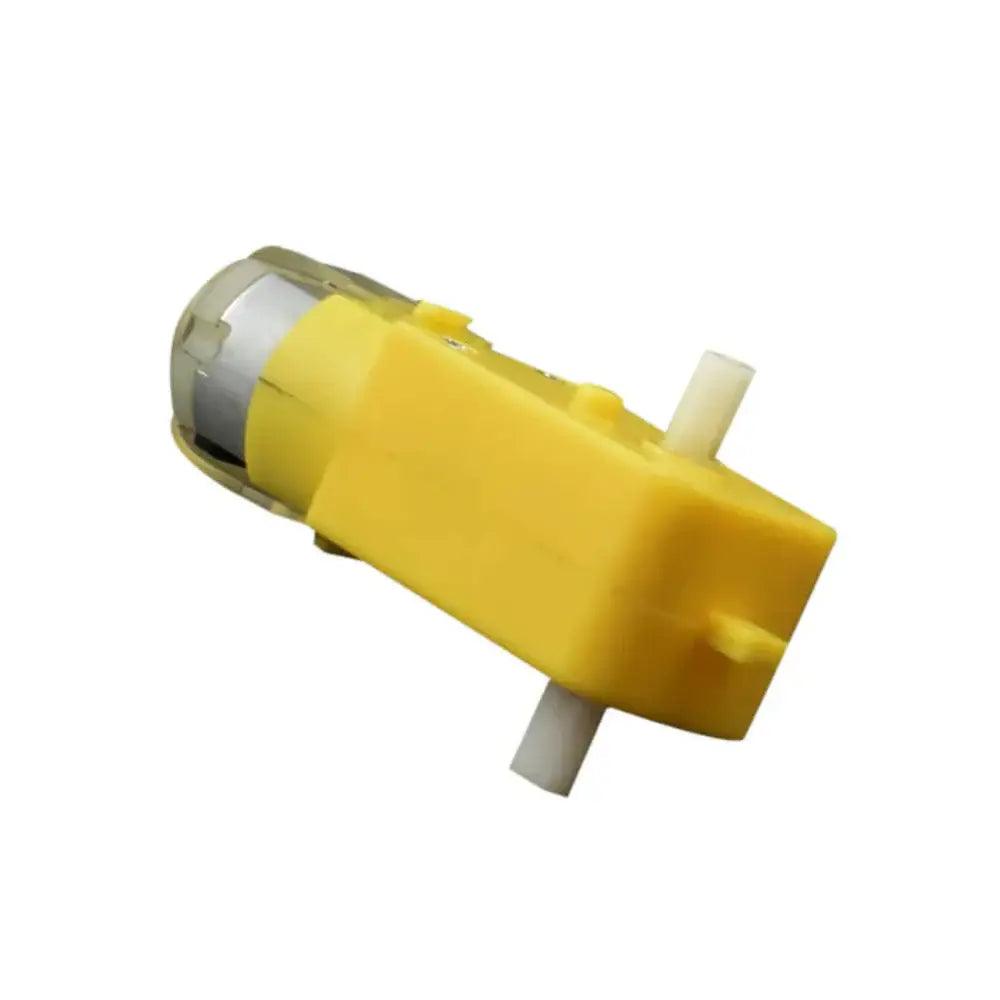

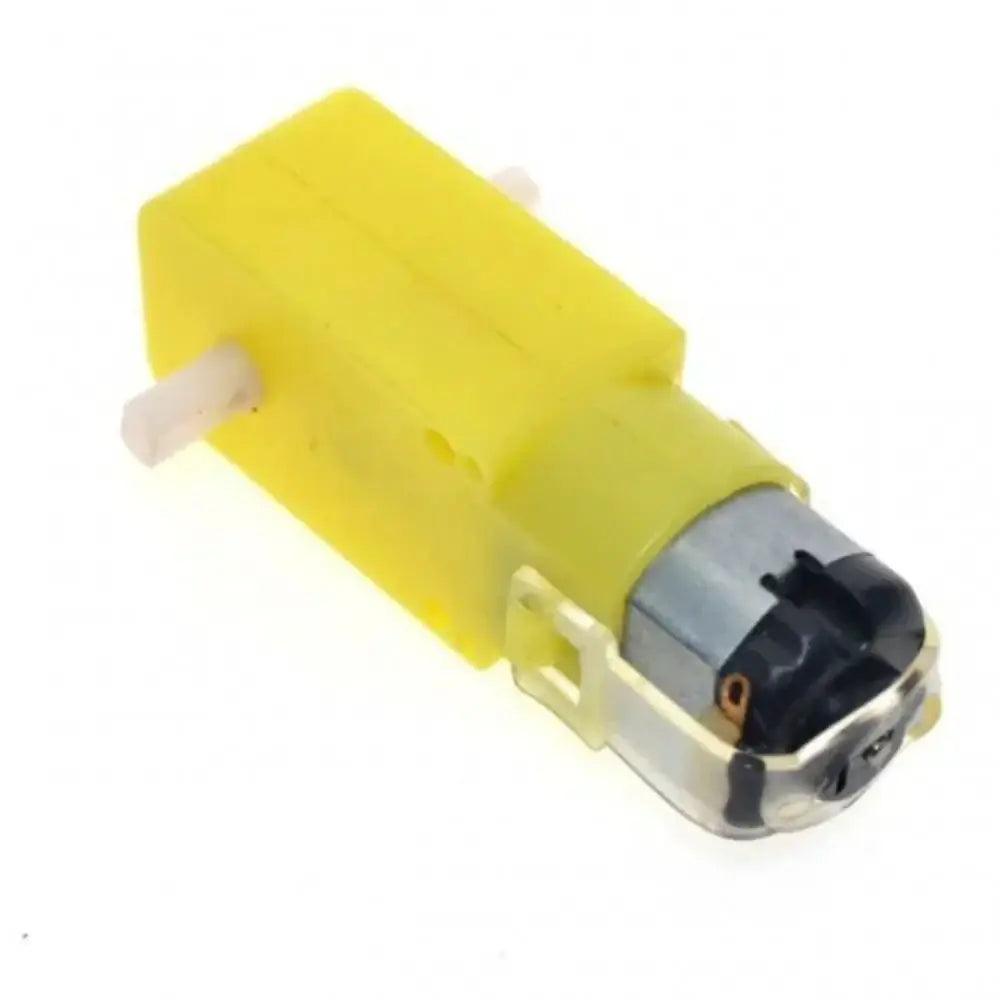

VIGOR 60 RPM Dual Shaft Straight Shape BO Motor

SKU: DLNBY1AD8F
The VIGOR 60 RPM Dual Shaft Straight Shape BO Motor is a compact and durable DC geared motor designed for robotics, automation, and educational projects. Featuring a dual-shaft configuration, the motor allows easy attachment of wheels, encoders, pulleys, and other mechanical components, making it ideal for mobile robot platforms and motion-control applications. Operating within a voltage range of 3V to...
Rs. 79.00
Rs. 89.00 Rs. 79.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Motor Type: Dual Shaft BO Geared DC Motor
Brand: VIGOR
Gearbox Shape: Straight
Rated Speed: 60 RPM
Rated Voltage: 9V DC
Operating Voltage: 3V ā€“ 12V DC
No-Load Current: 40mA ā€“ 180mA
Shaft Type: Dual Shaft
Shaft Diameter: 5.2mm ā€“ 5.5mm
Shaft Length: 8mm
Gear Material: Injection-Molded Plastic
Motor Length: Approximately 70mm
Motor Width: Approximately 22.3mm
Depth (Including Shaft): Approximately 28mm
Rotation Type: Bidirectional (by reversing polarity)
Noise Level: Low Noise Operation
Compatible Wheels: 69mm Plastic Wheels and 87mm Multipurpose Wheels
Mounting Type: Chassis Mount with Integrated Holes
Weight: Lightweight Construction

Additional Resources

VIGOR 60 RPM Dual Shaft BO Motor.PDF

FAQ

1. What is the VIGOR 60 RPM Dual Shaft BO Motor used for?

The motor is commonly used in line follower robots, obstacle avoidance robots, robotic cars, STEM learning kits, and various DIY automation projects.

2. What is the operating voltage range of this BO motor?

The VIGOR 60 RPM BO Motor operates on a voltage range of 3V to 12V DC, making it suitable for battery-powered robotics projects.

3. Why does the motor have a dual shaft design?

The dual shaft design allows users to connect wheels, encoders, pulleys, and other mechanical components, providing greater flexibility in robotics applications.

4. What are the advantages of a 60 RPM motor?

A 60 RPM motor provides lower speed and higher torque, resulting in better control, stability, and precision for robotic movement and navigation.

5. Can this motor be used with Arduino and other microcontrollers?

Yes, the motor can be controlled using Arduino, ESP32, Raspberry Pi, STM32, and other controllers when connected through a suitable motor driver such as the L293D or L298N.

View full product details

The VIGOR 60 RPM Dual Shaft Straight Shape BO Motor is a compact and durable DC geared motor designed for robotics, automation, and educational projects. Featuring a dual-shaft configuration, the motor allows easy attachment of wheels, encoders, pulleys, and other mechanical components, making it ideal for mobile robot platforms and motion-control applications.

Operating within a voltage range of 3V to 12V DC, this motor delivers a low speed of 60 RPM with higher torque, making it suitable for applications requiring controlled movement and improved stability. The lightweight plastic gearbox ensures quiet operation, low friction, and minimal maintenance while maintaining reliable performance. It is widely used in line follower robots, obstacle avoidance robots, STEM kits, and Arduino-based projects.

Key Features

  • 60 RPM geared DC motor for controlled robotic movement
  • Dual shaft design for wheel and encoder mounting
  • Operating voltage range of 3Vā€“12V DC
  • High torque, low-speed performance
  • Lightweight plastic gear housing
  • Low noise and low friction operation
  • Integrated mounting holes for easy installation
  • Compatible with standard BO motor wheels
  • Shock-resistant and corrosion-resistant design
  • Low maintenance operation
  • Ideal for educational, hobby, and robotics projects
  • Cost-effective alternative to metal gear motors
