Laser Distance Sensor VL53L0X TOF

SKU: 6WERU7ZU3X
★★★★ ★ ★
4.5 (44 reviews)
The VL53L0X Laser Distance Sensor is a compact and highly accurate Time-of-Flight (ToF) ranging sensor capable of measuring absolute distances by emitting an infrared laser and calculating the time taken for the reflected light to return. Unlike traditional infrared proximity sensors, the VL53L0X provides precise distance measurements regardless of the target's color, reflectivity, or ambient lighting conditions. Developed by STMicroelectronics,...
Rs. 139.00
Rs. 149.00 Rs. 139.00
Save Rs. 10 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery for all orders above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The VL53L0X Laser Distance Sensor is a compact and highly accurate Time-of-Flight (ToF) ranging sensor capable of measuring absolute distances by emitting an infrared laser and calculating the time taken for the reflected light to return. Unlike traditional infrared proximity sensors, the VL53L0X provides precise distance measurements regardless of the target's color, reflectivity, or ambient lighting conditions.

Developed by STMicroelectronics, the sensor integrates a laser emitter, receiver, and advanced signal processing circuitry into a single compact module. It communicates through the I2C interface, making it easy to connect with Arduino, ESP32, STM32, Raspberry Pi Pico, Raspberry Pi, and other microcontroller platforms.

The VL53L0X is widely used in robotics, obstacle avoidance systems, drones, automation equipment, smart devices, and distance measurement applications where accurate non-contact sensing is required.

Key Features

  • Laser-based Time-of-Flight (ToF) distance measurement
  • Accurate and reliable ranging performance
  • Measures absolute distance independent of target color
  • Compact and lightweight module
  • High-speed distance measurement
  • I2C communication interface
  • Built-in infrared laser emitter
  • Integrated signal processing engine
  • Low power consumption
  • High ambient light immunity
  • Multiple sensor support using I2C address configuration
  • Easy integration with microcontrollers
  • Suitable for indoor ranging applications
  • Ideal for robotics and automation projects

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Sensor IC: VL53L0X
Sensor Type: Time-of-Flight (ToF) Laser Distance Sensor
Distance Measurement Range: Up to 2 Meters (Typical)
Measurement Principle: Infrared Laser Time-of-Flight
Laser Wavelength: 940nm
Communication Interface: I2C
Default I2C Address: 0x29
Operating Voltage (Sensor): 2.6V to 3.5V DC
Module Supply Voltage: 3V to 5V DC
Distance Resolution: 1mm
Measurement Accuracy: ±3% Typical
Field of View (FoV): Approximately 25°
Measurement Frequency: Up to 50Hz
Current Consumption: Approximately 20mA During Operation
Standby Current: Less than 5µA
Onboard Voltage Regulator: Yes (Module Dependent)
Logic Level Translation: Yes (Module Dependent)
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -40°C to +85°C
Module Dimensions: Approximately 25mm × 13mm
Mounting Type: PCB Module

Additional Resources

VL53L0X TOF Laser Distance Sensor.PDF

FAQ

1. What is the VL53L0X ToF Laser Distance Sensor?

 The VL53L0X is a Time-of-Flight (ToF) laser distance sensor that measures the distance between the sensor and an object by calculating the time taken for a laser pulse to travel to the target and back. It provides accurate, non-contact distance measurements.

2. What is the measurement range of the VL53L0X sensor?

 The VL53L0X can typically measure distances from a few centimeters up to approximately 2 meters under suitable conditions, making it ideal for proximity sensing, obstacle detection, and distance measurement applications.

3. How does the VL53L0X differ from ultrasonic distance sensors?

 Unlike ultrasonic sensors that use sound waves, the VL53L0X uses laser-based Time-of-Flight technology. This allows for faster response times, higher accuracy, better performance with small objects, and immunity to audible noise interference.

4. How is the VL53L0X connected to a microcontroller?

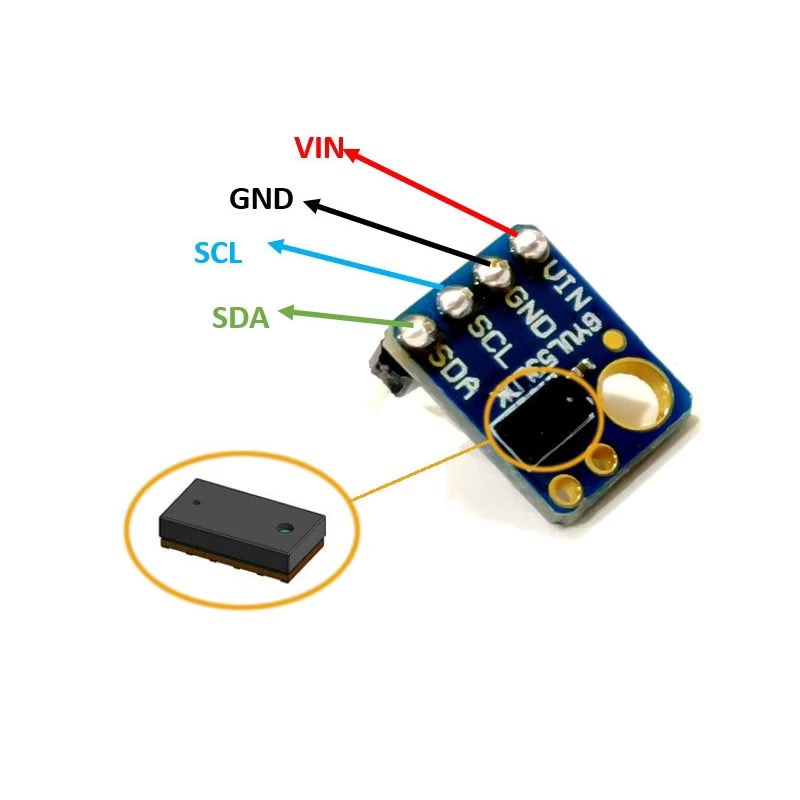

 The sensor communicates using the I2C interface, requiring only two data lines (SDA and SCL) along with power and ground connections. It can be easily interfaced with platforms such as Arduino, Raspberry Pi, ESP32, and STM32.

5. What are the common applications of the VL53L0X ToF Laser Distance Sensor?

 The VL53L0X is widely used in robotics, obstacle avoidance systems, drones, gesture recognition devices, automatic doors, smart home systems, industrial automation, and distance-measuring instruments where compact size and accurate measurements are required.
