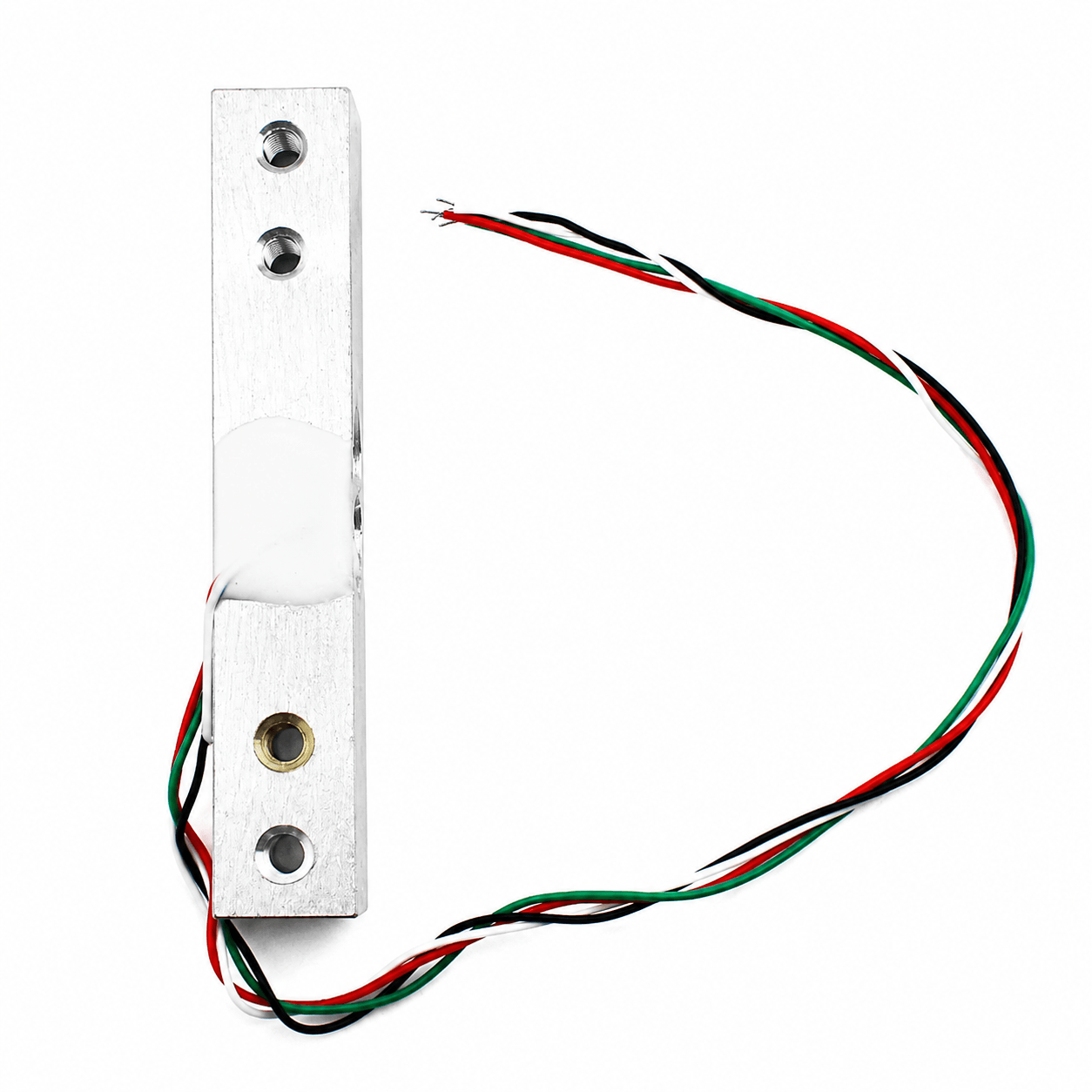

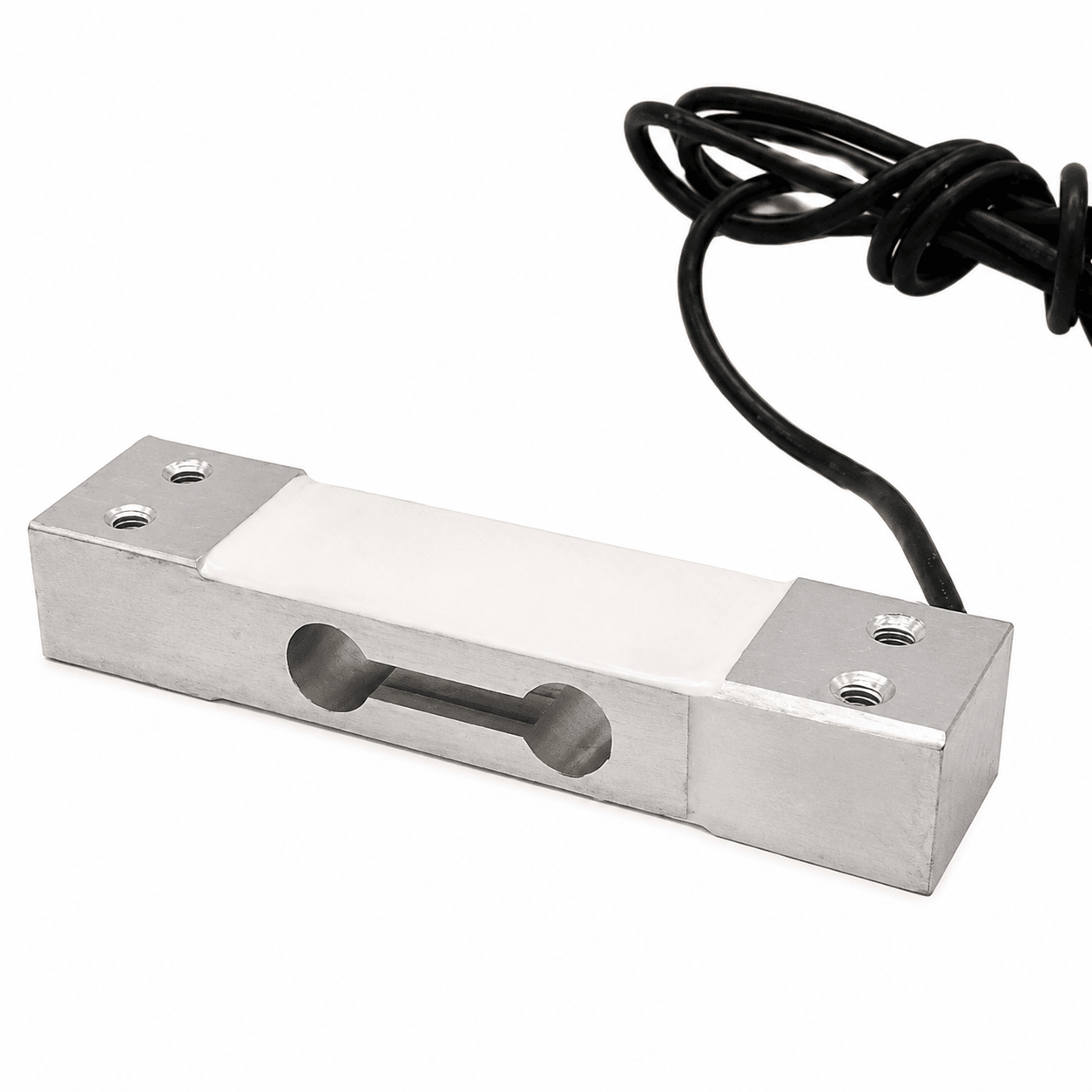

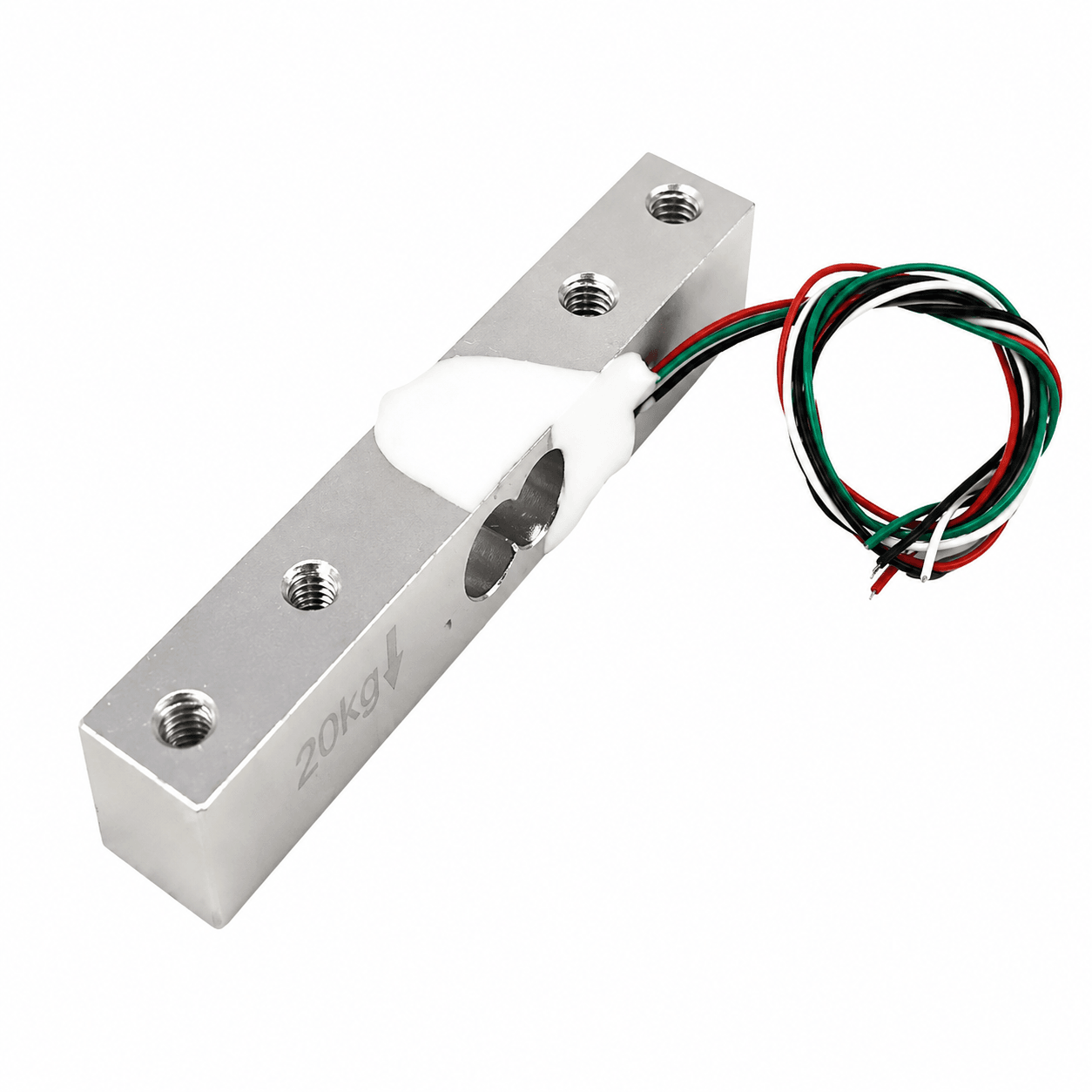

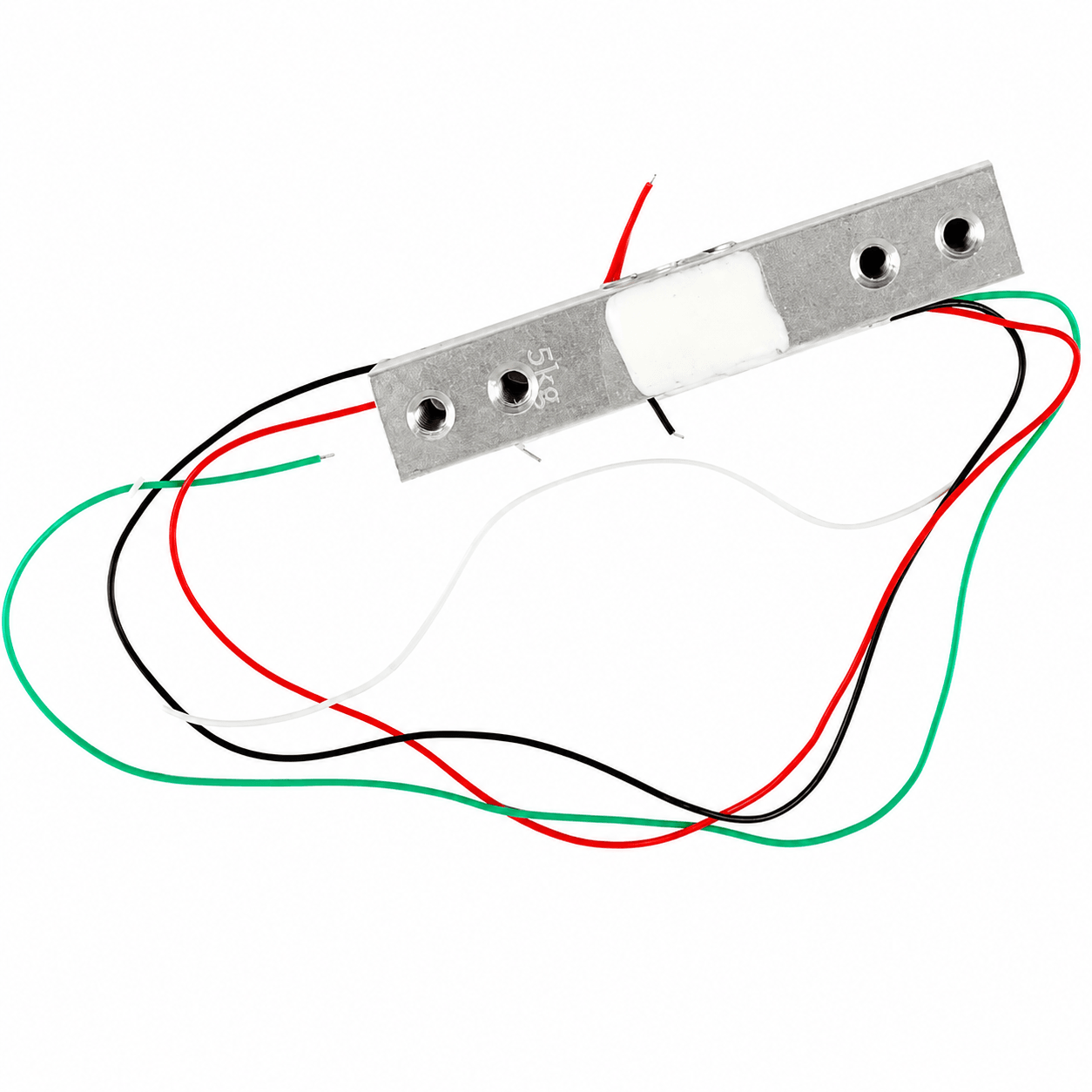

Weight Sensor - 10KG Load Cell

SKU: 4U83DNSZEL
★★★★ ★ ★
4.5 (52 reviews)
The Weight Sensor – 10KG Load Cell is a strain-gauge-based force and weight measurement sensor designed to measure loads up to 10 kilograms. It converts mechanical deformation caused by an applied weight or force into a small differential electrical signal that can be amplified, digitized, and processed by a microcontroller or electronic weighing system. The sensor typically contains precision strain...
Rs. 149.00
Rs. 155.00 Rs. 149.00
Save Rs. 6
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
For Bulk Order Contact Us View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The Weight Sensor – 10KG Load Cell is a strain-gauge-based force and weight measurement sensor designed to measure loads up to 10 kilograms. It converts mechanical deformation caused by an applied weight or force into a small differential electrical signal that can be amplified, digitized, and processed by a microcontroller or electronic weighing system.

The sensor typically contains precision strain gauges arranged in a Wheatstone bridge configuration and bonded to an aluminium alloy beam structure. When a load is applied in the correct direction, the load cell body deforms by a very small amount. This deformation changes the resistance of the strain gauges, producing a differential voltage proportional to the applied load.

Because the output signal from the load cell is very small, it is commonly connected to an HX711 24-bit ADC and load cell amplifier module. The HX711 amplifies and converts the load cell's differential signal into digital data that can be read by Arduino, ESP32, STM32, Raspberry Pi, RP2040, and other development platforms.

The 10KG Load Cell is suitable for digital weighing scales, kitchen scales, parcel weighing systems, automatic filling machines, inventory monitoring systems, robotics, force measurement experiments, and IoT-based weight monitoring applications.

Key Features

  • Maximum weighing capacity of 10kg
  • Strain-gauge-based weight sensing technology
  • Converts mechanical force into an electrical signal
  • Wheatstone bridge sensing configuration
  • High sensitivity and stable output
  • Good linearity and repeatability
  • Low hysteresis
  • Compact aluminium alloy construction
  • Lightweight and durable sensor body
  • Four-wire electrical interface on common versions
  • Suitable for platform weighing applications
  • Easy interfacing with the HX711 load cell amplifier
  • Suitable for static weight and force measurement
  • Low power consumption
  • Easy calibration using known reference weights
  • Compatible with popular microcontrollers and development boards

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Sensor Type: Strain Gauge Load Cell
Measurement Type: Weight / Force
Maximum Capacity: 10kg
Equivalent Capacity: Approximately 22lb
Sensor Construction: Strain Gauge Wheatstone Bridge
Output Type: Differential Analog Signal
Rated Output: Typically 1.0mV/V ±0.15mV/V, Model Dependent
Recommended Excitation Voltage: Typically 5V DC
Maximum Excitation Voltage: Typically 10V DC, Model Dependent
Typical Non-Linearity: Approximately ±0.05% Full Scale
Typical Hysteresis: Approximately ±0.05% Full Scale
Typical Repeatability: Approximately ±0.05% Full Scale
Creep: Model Dependent
Zero Balance: Model Dependent
Safe Overload: Typically 120% of Rated Capacity
Ultimate Overload: Typically Up to 150% of Rated Capacity, Model Dependent
Input Resistance: Typically Approximately 1000Ω
Output Resistance: Typically Approximately 1000Ω
Insulation Resistance: Typically ≥2000MΩ
Operating Temperature: Approximately -20°C to +55°C or +65°C, Model Dependent
Body Material: Aluminium Alloy
Number of Wires: 4 on Common Full-Bridge Versions
Mounting Type: Beam-Type Mechanical Mounting
Typical Dimensions: Approximately 80mm × 12.7mm × 12.7mm, Model Dependent
Recommended Signal Interface: HX711 24-Bit Load Cell ADC / Amplifier
Compatibility: Arduino UNO, Nano, Mega, ESP32, STM32, Raspberry Pi, RP2040, PIC, AVR and other controllers through a suitable load cell amplifier

Additional Resources

Load Cell.PDF

FAQ

1. What is the 10KG Load Cell Weight Sensor used for?

The sensor is used to measure weight or applied force up to 10kg. It is commonly used in digital scales, kitchen scales, parcel weighing systems, automatic filling machines, robotics, and IoT-based weight monitoring systems.

2. Can the 10KG Load Cell be connected directly to an Arduino?

The load cell produces a very small differential analog signal, so it is normally connected through a load cell amplifier and ADC module such as the HX711 before interfacing with an Arduino.

3. How does the 10KG Load Cell measure weight?

The load cell uses strain gauges attached to its metal structure. When weight is applied, the metal body deforms slightly, changing the resistance of the strain gauges and producing a differential electrical signal proportional to the applied load.

4. Is the 10KG Load Cell compatible with ESP32 and STM32?

Yes. When connected through a suitable amplifier and ADC such as the HX711, the load cell can be used with ESP32, STM32, Arduino, Raspberry Pi, RP2040, PIC, AVR, and other development platforms.

5. Does the 10KG Load Cell require calibration?

Yes. Calibration is required to convert raw sensor readings into accurate weight measurements. A known reference weight is placed on the weighing platform and used to determine the calibration factor for the measurement system.
