Specifications:

Device Type: PPTC Resettable Fuse (Polymeric Positive Temperature Coefficient)
Package Size: 0805 SMD (2.0mm × 1.25mm)
Hold Current (Ihold): 250mA
Trip Current (Itrip): Typically 500mA
Maximum Operating Voltage: 9V DC
Maximum Fault Current: As specified by manufacturer
Initial Resistance: Low resistance during normal operation
Resettable: Yes, automatically resets after fault removal and cooling
Mounting Type: Surface Mount Device (SMD)
Operating Temperature Range: -40°C to +85°C (typical)

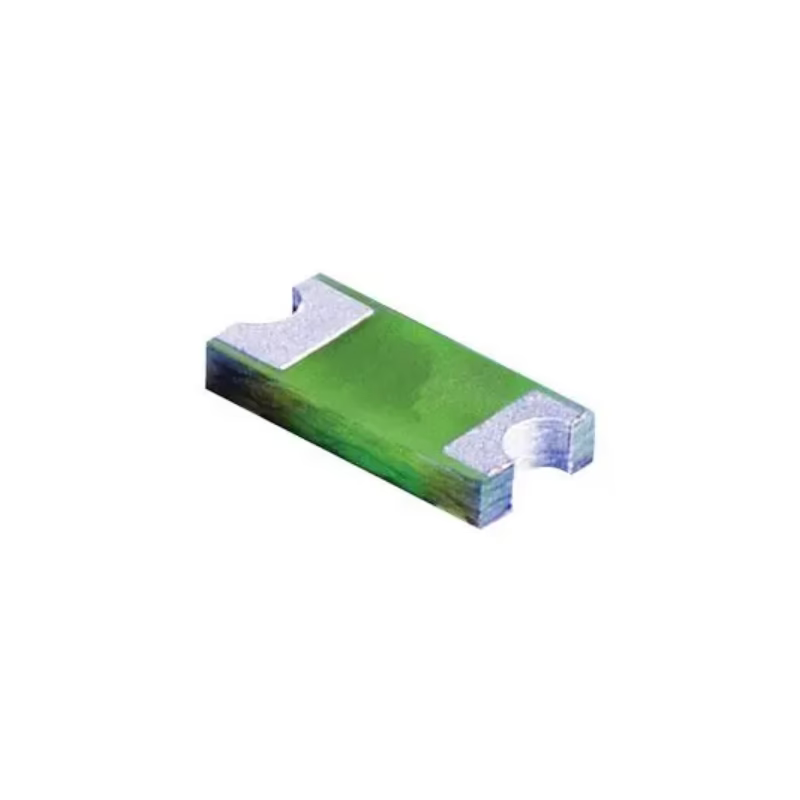

1. What is the WT-0805-025 – 9V 250mA PPTC Resettable Fuse?

The WT-0805-025 is a Polymeric Positive Temperature Coefficient (PPTC) resettable fuse designed to protect electronic circuits from overcurrent conditions. It features a 250mA hold current, 9V maximum operating voltage, and comes in a compact 0805 surface-mount package.

2. How does the WT-0805-025 protect electronic circuits?

Under normal conditions, the fuse maintains a low resistance. When excessive current flows through it, the device heats up and switches to a high-resistance state, limiting the current and protecting the circuit. Once the fault is cleared and the fuse cools down, it automatically resets.

3. What are the common applications of the WT-0805-025 PPTC fuse?

This resettable fuse is commonly used in portable electronics, battery-powered devices, USB peripherals, IoT products, communication equipment, and low-voltage electronic circuits requiring overcurrent protection.

4. What does the 250mA rating represent?

The 250mA rating is the hold current, which is the maximum continuous current the fuse can carry under normal operating conditions without tripping. Currents above this value may cause the device to enter its protective state.

5. What are the benefits of using a PPTC resettable fuse?

A PPTC resettable fuse provides reusable overcurrent protection, eliminates the need for fuse replacement after a fault, reduces maintenance costs, and improves the reliability of electronic products.
