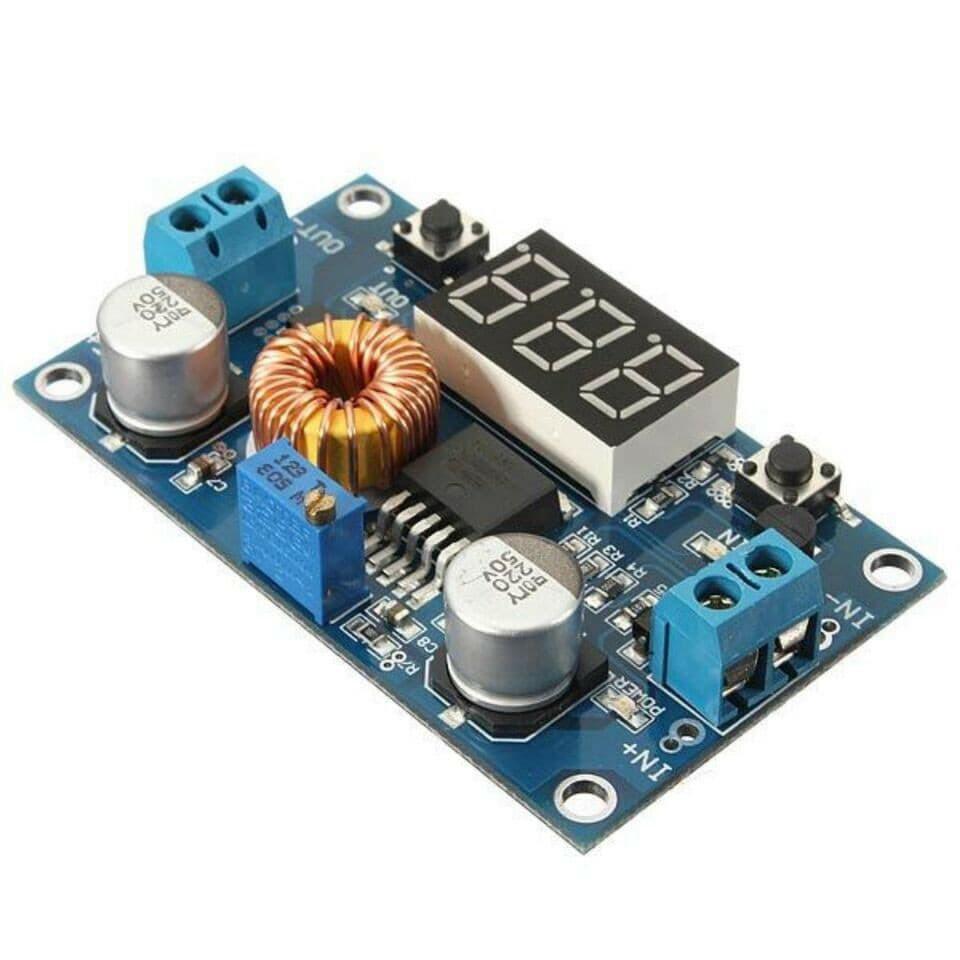

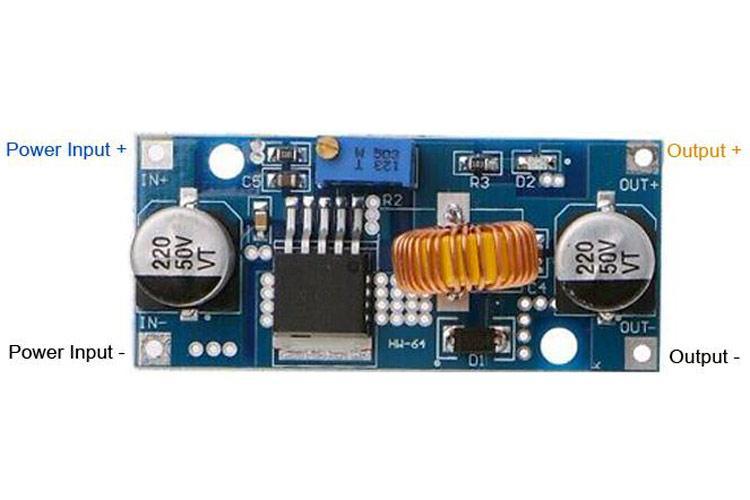

XL4015 Step Down Module

SKU: RWR8FOOMEQ
The XL4015 Step Down Module is an adjustable step down module based on XL4015 Chip From XLSEMI. It operates at an frequency of 180Khz and can provide up to 5A output current, with high efficiency, less ripple, and good line and load regulations. Basically its an Step Down Module, so the input voltage must be higher than the expected output....
Rs. 99.00
Rs. 109.00 Rs. 99.00
Save Rs. 10
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Voltage: 5V – 32V DC
Output Voltage: 0.8V – 30V DC (adjustable)
Output Current: Up to 5A (recommended ≤4A continuous)
Efficiency: Up to 96%
Switching Frequency: ~180 kHz
Operating Temperature: -40°C to +85°C

Additional Resources

XL4015 Step Down Module.PDF

FAQ

1. What is an XL4015 step-down module?

The XL4015 step-down module is a high-power DC-DC buck converter based on the XL4015 that reduces a higher input voltage to a lower, adjustable output voltage with high efficiency.

2. What is the difference between CV and CC modes in this module?

CV (Constant Voltage) mode maintains a fixed output voltage, while CC (Constant Current) mode limits the output current to a preset value, which is useful for battery charging and LED applications.

3. What is the maximum current output of the XL4015 module?

The module can provide up to 5A of output current, but for safe and continuous operation, it is recommended to use it below 4A with proper cooling.

4. Can the XL4015 module be used for battery charging?

Yes, it is suitable for battery charging because it supports both constant voltage and constant current modes, which are essential for safely charging batteries like Li-ion and lead-acid.

5. What are common applications of the XL4015 module?

It is widely used in powering devices like Arduino Uno, LED drivers, solar power systems, battery chargers, and high-power DC applications.

View full product details

The XL4015 Step Down Module is an adjustable step down module based on XL4015 Chip From XLSEMI. It operates at an frequency of 180Khz and can provide up to 5A output current, with high efficiency, less ripple, and good line and load regulations.

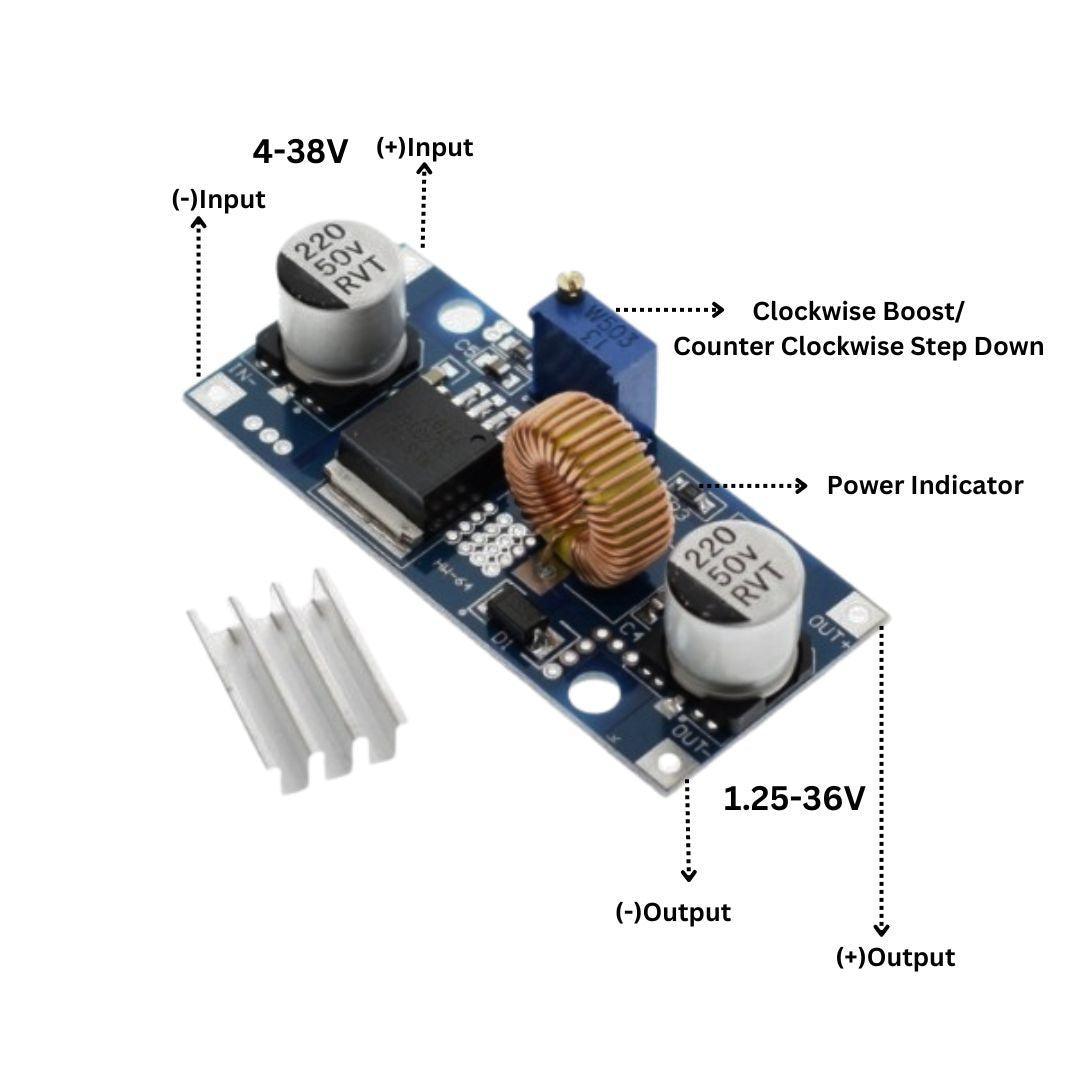

Basically its an Step Down Module, so the input voltage must be higher than the expected output. The output voltage can be fixed using the Potentiometer on the module. It has wide input and output voltage range, and also provides high output current, compared to other peers. Apart from this, it also provides the thermal overrun, output short protection, and current limiting. The XL4015 Step Down Module comes with heatsink, for extra heat dissipation.

Applications:

  • LCD Monitor and LCD TV
  • Portable Power Supply
  • Telecom/ Networking Equipment
