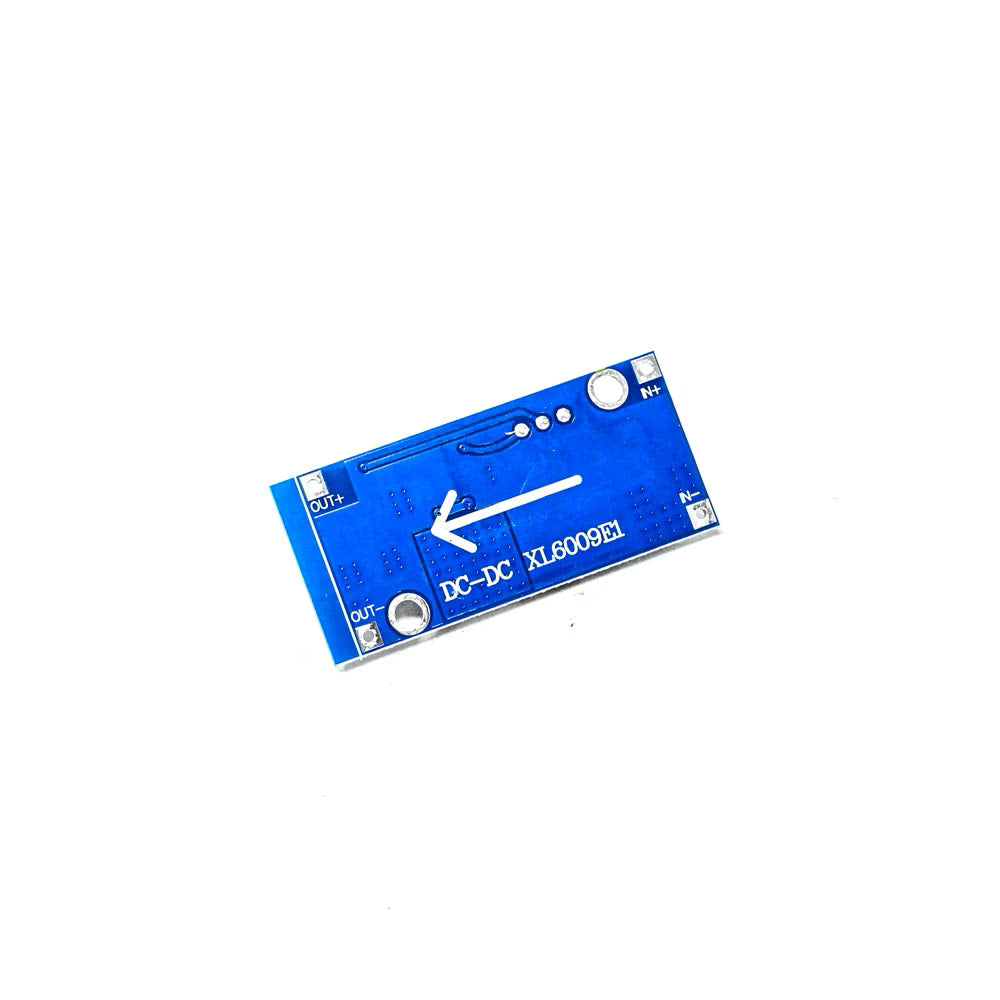

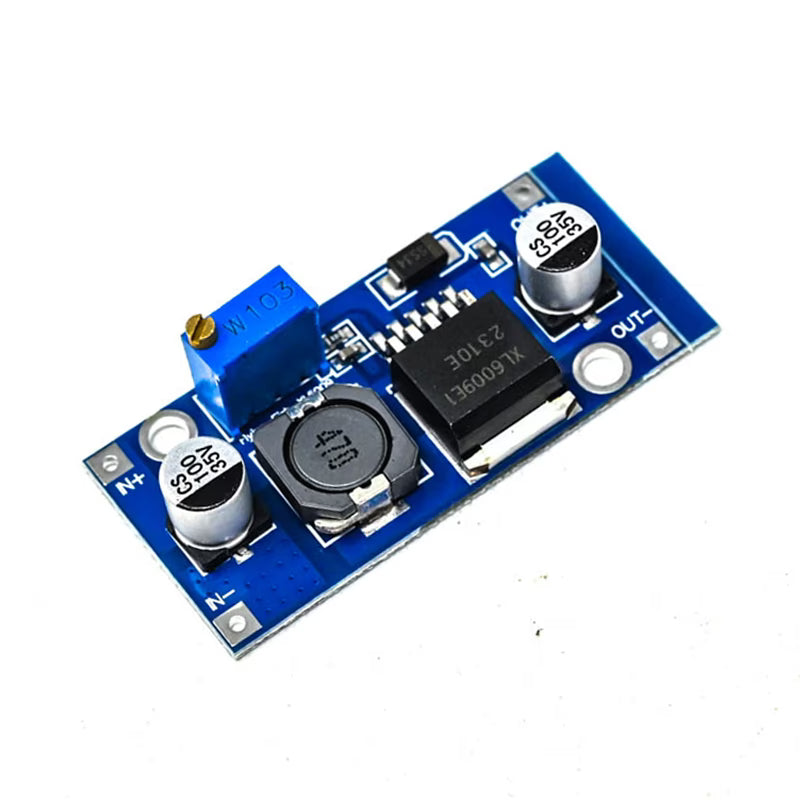

XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board

SKU: ZGOAYFPOGP
The XL6009 DC-DC Step-Up Converter is a high-efficiency boost voltage regulator module designed to increase a lower DC input voltage to a higher adjustable DC output voltage. Based on the advanced XL6009E1 switching regulator chip, this module offers improved performance, higher switching frequency, and better efficiency compared to older LM2577-based booster circuits. It is widely used in robotics, battery-powered devices,...
Rs. 65.00
Rs. 69.00 Rs. 65.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Voltage: 3V – 32V DC
Recommended Input Voltage: 5V – 32V DC
Output Voltage: 5V – 35V DC (Adjustable)
Maximum Input Current: 4A
Conversion Efficiency: Up to 94%
Switching Frequency: 400KHz
Output Ripple: Approximately 50mV
Voltage Regulation: ±0.5%
Load Regulation: ±0.5%
Operating Temperature: -40°C to +85°C
Module Dimensions: Approximately 43mm × 21mm × 14mm

Additional Resources

XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board.PDF

FAQ

1. What is the XL6009 DC-DC Step-Up Converter used for?

 The XL6009 DC-DC Step-Up Converter is used to increase a lower DC input voltage to a higher DC output voltage. It is commonly used in battery-powered projects, LED drivers, solar applications, robotics, and portable electronic devices.

2. What input and output voltage range does the XL6009 Booster Circuit support?

 The XL6009 module typically accepts an input voltage of 3V to 32V DC and can boost it to an adjustable output voltage ranging from 5V to 35V DC, depending on the input voltage and load conditions.

3. How efficient is the XL6009 Step-Up Converter?

 The XL6009 converter offers high conversion efficiency, often reaching up to 94%, which helps reduce power loss and heat generation while providing stable voltage output for electronic circuits.

4. Can the XL6009 Booster Circuit power high-current devices?

 Yes, the XL6009 module can deliver output currents of up to 4A under suitable cooling conditions. However, the actual current capability depends on factors such as input voltage, output voltage, and heat dissipation.

5.How is the output voltage adjusted on the XL6009 module?

 The module includes an onboard multi-turn potentiometer that allows users to precisely adjust the output voltage. A multimeter should be used while turning the potentiometer to set the desired voltage accurately.

View full product details

The XL6009 DC-DC Step-Up Converter is a high-efficiency boost voltage regulator module designed to increase a lower DC input voltage to a higher adjustable DC output voltage. Based on the advanced XL6009E1 switching regulator chip, this module offers improved performance, higher switching frequency, and better efficiency compared to older LM2577-based booster circuits. It is widely used in robotics, battery-powered devices, DIY electronics projects, solar applications, LED lighting systems, and portable power supplies.

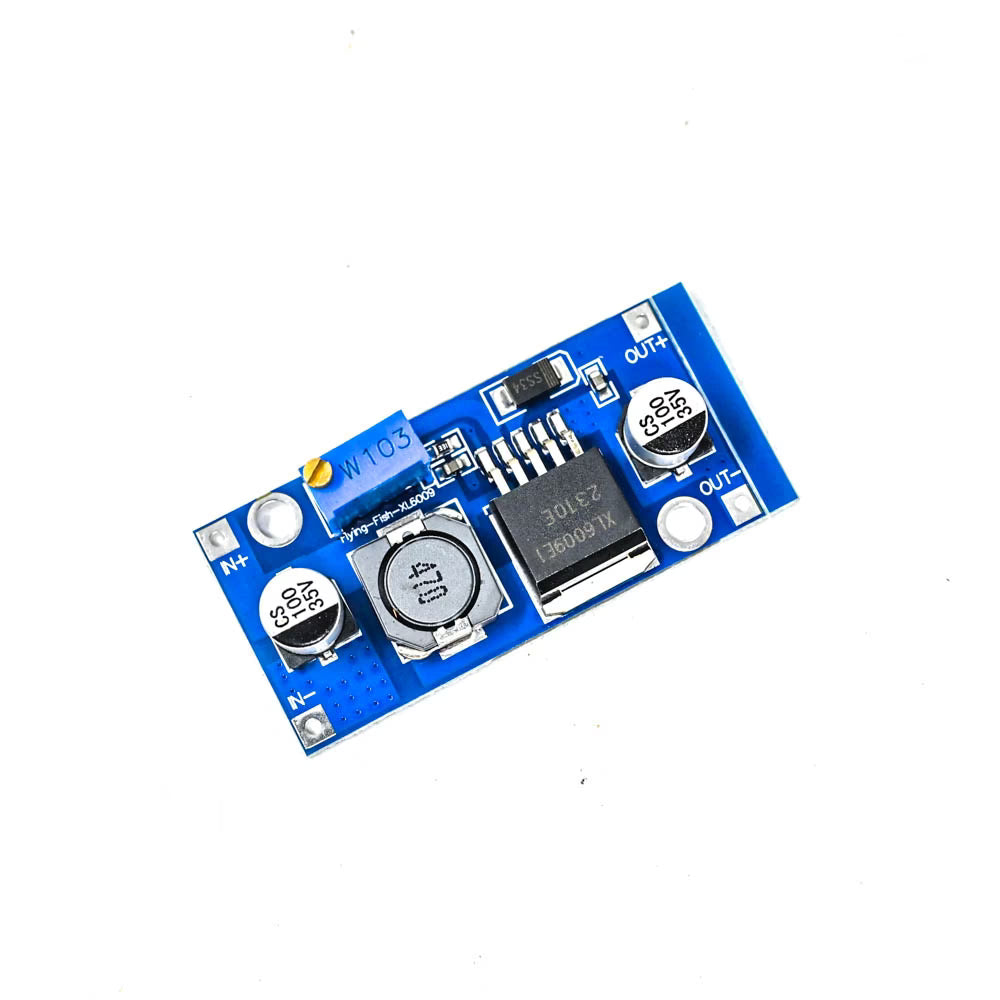

The XL6009 module operates as a boost converter, meaning it steps up the input voltage to a higher output voltage. It uses high-frequency switching technology along with an inductor, diode, and capacitors to efficiently transfer energy from the input to the output while maintaining stable voltage regulation. The output voltage can be adjusted using the onboard multi-turn potentiometer.
