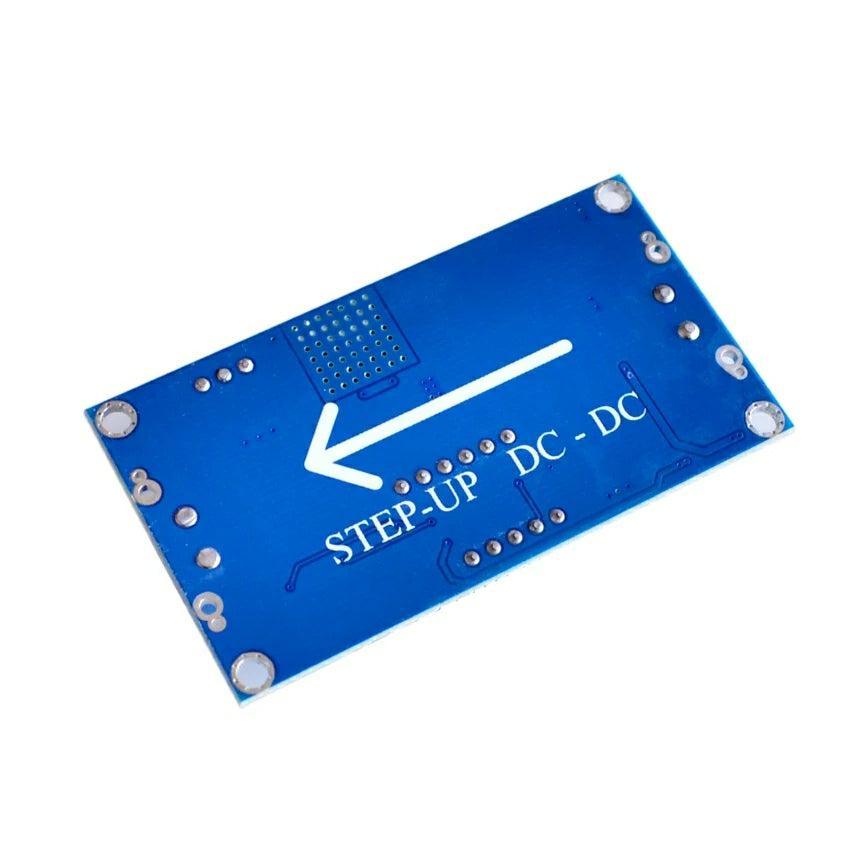

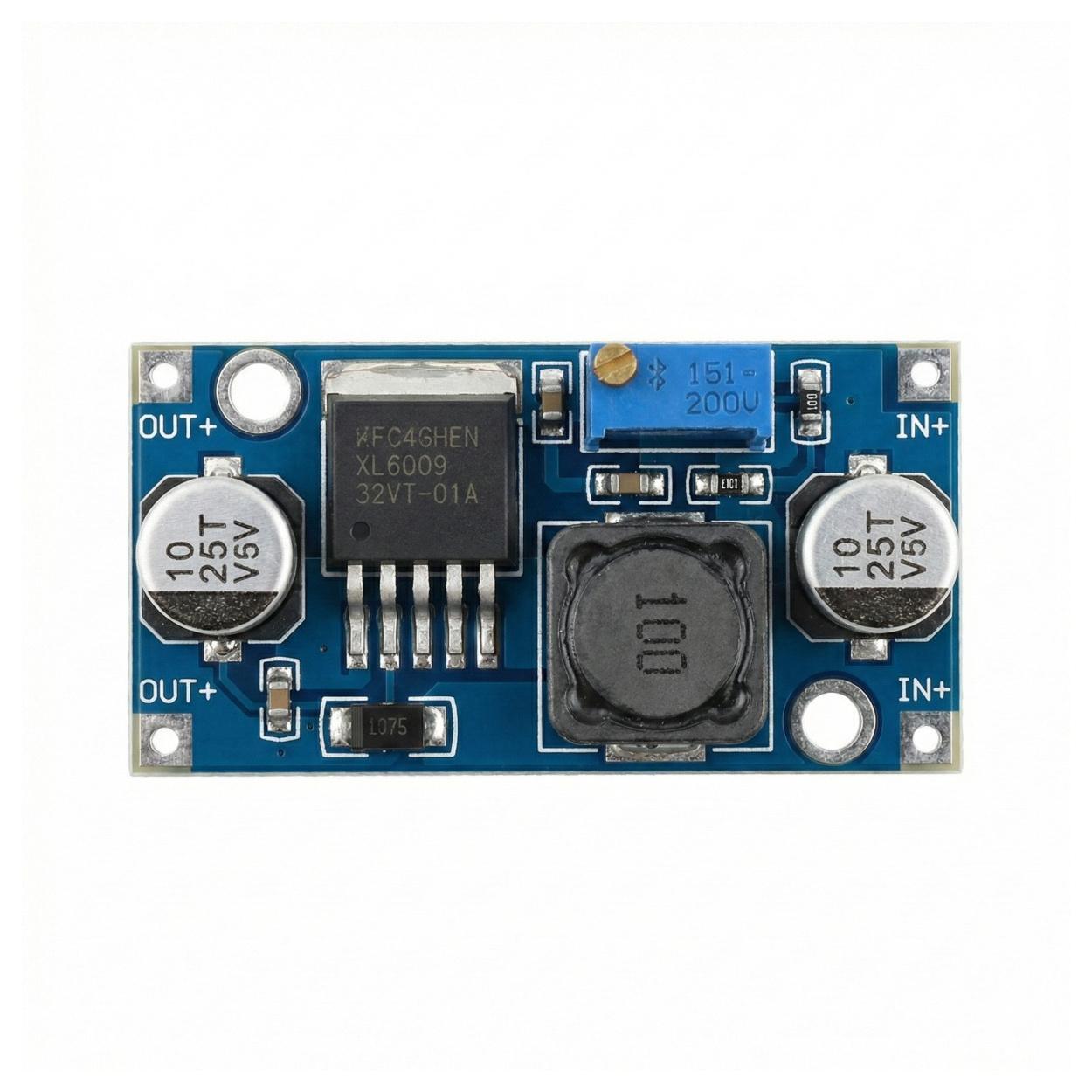

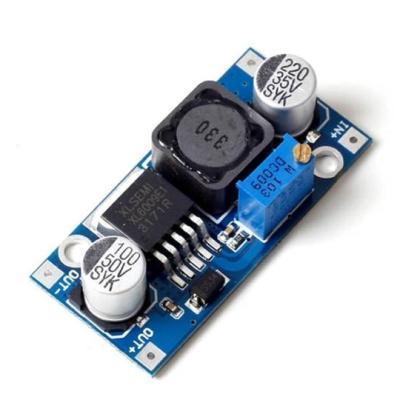

XL6009 Step Up Module – DC to Dc Boost Module

SKU: VUUJU7SKAB
★★★★ ★ ★
4.9 (22 reviews)
The XL6009 Step Up Module is a high quality Step Up Module. The suuported input voltage range is very wide. The output voltage range is also very high. The output voltage can be adjusted using the Potentiometer. The peak output current is 3A, which makes it suitable for various kind of applications in different electronics appliances. The XL6009 Step Up...
Rs. 79.00
Rs. 99.00 Rs. 79.00
Save Rs. 20 Incl. GST (No Hidden Charges)
Sold out
Tax included. Shipping calculated at checkout.
COD Available
Easy Return
Quality Assured
12 people are viewing this right now
Secure Checkout With
Bulk Orders Available
Special Pricing for Schools, Colleges & Businesses
Contact Us
Free Delivery For All Prepaid Orders Above ₹999
Shop for ₹999 or more and get FREE delivery
across India.
FREE
View full product details
Same Day Dispatch Order before 2PM
Pan India Delivery Shipping in 24-48H
Secure Packaging Safe & Damage Free
Dedicated Support Expert Assistance

The XL6009 Step Up Module is a high quality Step Up Module. The suuported input voltage range is very wide. The output voltage range is also very high. The output voltage can be adjusted using the Potentiometer. The peak output current is 3A, which makes it suitable for various kind of applications in different electronics appliances. The XL6009 Step Up Module is a non isolated DC to DC Step Up Module. The build quality is very good, as it consists of high quality inductor, capacitors, and Potentiometer. The module has high surface area, and no components on the reverse side, which makes up a good heat sink.

  • Non Isolated DC DC Voltage Boost Chip
  • Input Voltage Range: 3V to 32V
  • Output Voltage: 5V to 35V
  • Peak Current: 3A
  • High Efficiency: Upto 97%
  • Switching Frequency: 400Khz

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Input Voltage: 3V – 32V DC
Output Voltage: 5V – 35V DC (adjustable)
Output Current: Up to 3A (depends on input/output conditions)
Efficiency: Up to 94%
Switching Frequency: ~400 kHz
Operating Temperature: -40°C to +85°C

Additional Resources

XL6009 Step Up Module.PDF

FAQ

1. What is an XL6009 step-up module?

The XL6009 step-up module is a DC-DC boost converter based on the XL6009 that increases a lower input voltage to a higher adjustable output voltage.

2. How do you adjust the output voltage of the XL6009 module?

The output voltage is adjusted using the onboard potentiometer. Turning the screw changes the voltage, and it should be set using a multimeter for accuracy.

3. What is the maximum output current of the XL6009 module?

The module can deliver up to 3A, but the actual current depends on the input voltage, output voltage, and efficiency. For continuous use, lower current is recommended.

4. Can the XL6009 module reduce voltage like a buck converter?

No, the XL6009 is a boost (step-up) converter and can only increase voltage. It cannot step down voltage.

5. What are common applications of the XL6009 module?

It is widely used for boosting battery voltage, powering devices like Arduino Uno, LED drivers, solar power systems, and portable electronics projects.
