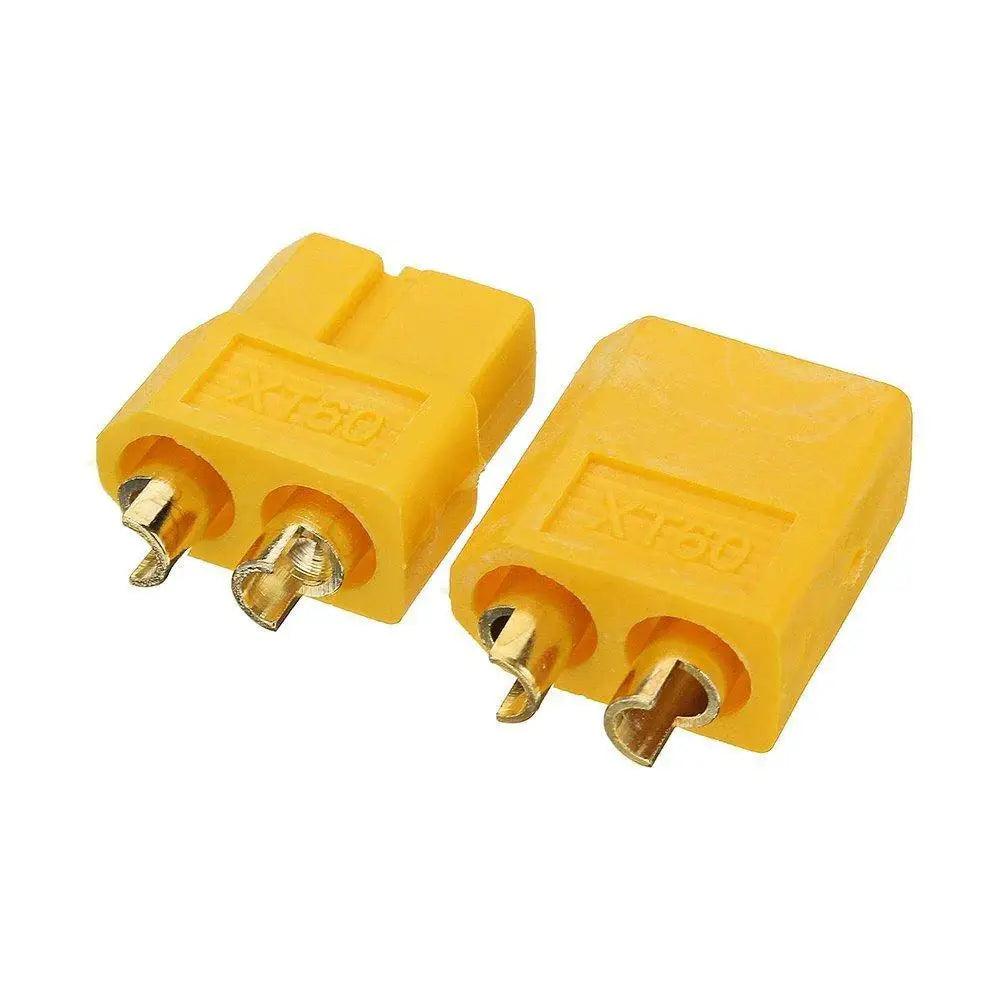

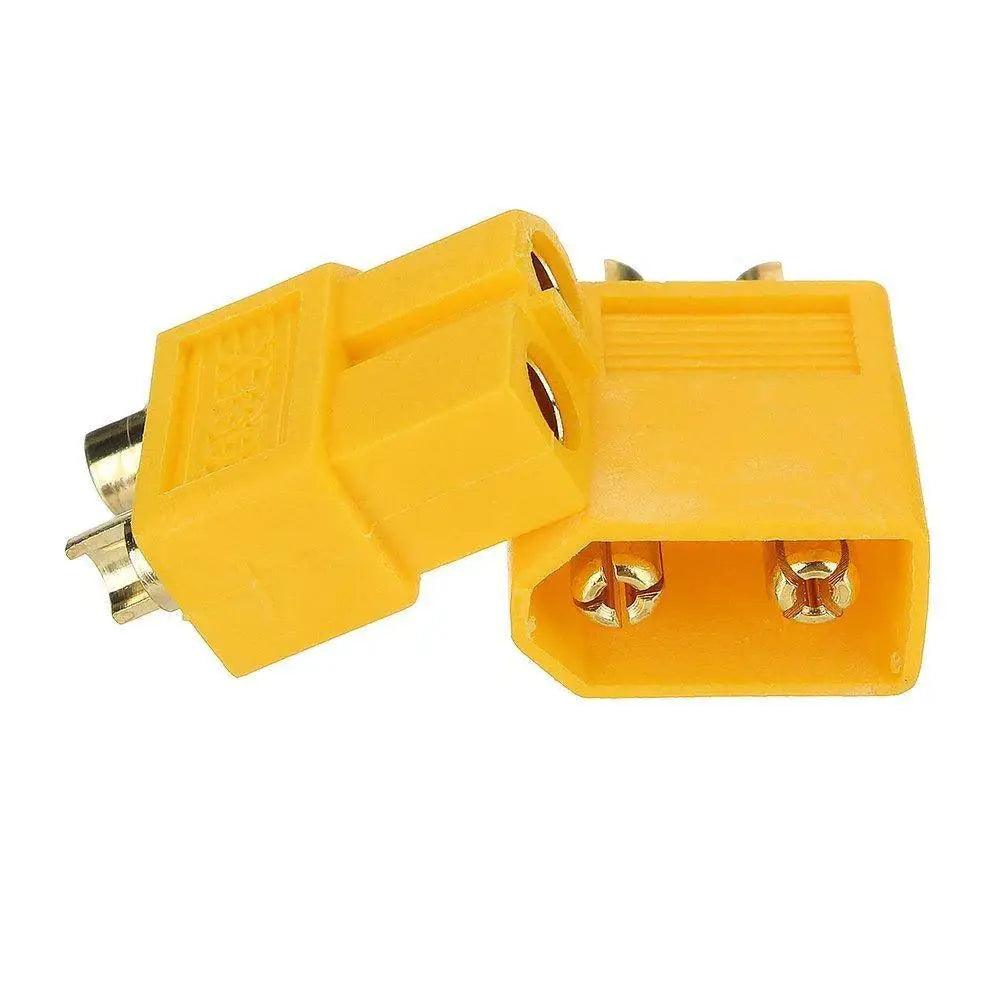

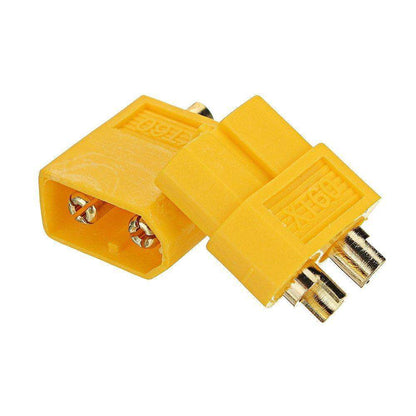

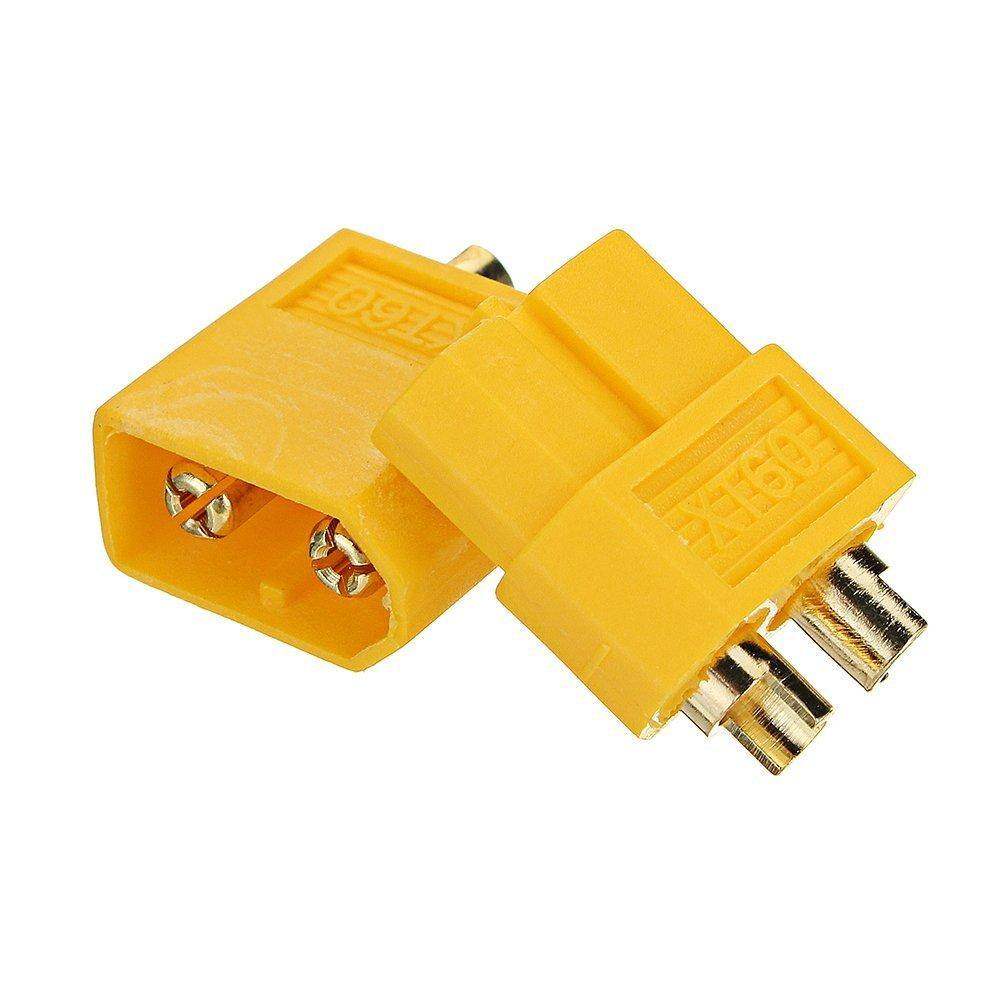

XT60 Connector Male Female Pair

SKU: A2KL6MTSX9
XT60 Connectors – High-Quality Gold-Plated Connectivity Solutions Looking for durable, high-quality XT60 connectors at an affordable price? Our XT60 connectors are designed to provide reliable, efficient, and safe connections for a wide range of applications. Measuring 3.5mm, these yellow connectors are built for ease of use, durability, and versatility, making them ideal for both hobbyists and professionals. Whether you’re into...
Rs. 65.00
Rs. 69.00 Rs. 65.00
Save Rs. 4
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Model: XT60
Bullet Connector Size: 3.5 mm
Current Rating: 30 A
Weight: 7 g
Dimensions: 1 × 1 × 0.5 cm

Additional Resources

XT60 Connector Male Female Pair.PDF

FAQ

1. How to solder XT60 connectors?

To begin, you should tin the tips of your wires and fill the small cups on the connectors with solder. Heat the solder cup and insert the tinned wire, holding it steady until the joint cools and solidifies. Repeat this process for both the XT60 male and XT60 female connectors, ensuring you match the correct wire polarity to the terminal markings.

2. How to connect XT60 connectors?

Connecting these plugs is straightforward; simply align the polarized housings of the XT60 male and XT60 female parts. Push the two connectors together firmly until you feel them snap into place for a secure, high-current link. Their unique shape makes it impossible to connect them with the wrong polarity.

3. How to wire XT60 connectors?

Properly wiring these connectors requires you to solder each power wire to the correct terminal. Pay close attention to the positive (+) and negative (-) markings on the housing of the XT60 connectors. Reversing the polarity can cause a dangerous short circuit that could damage your electronics.

4. How to install XT60 connectors?

Installation involves soldering your main power leads to create a reliable electrical connection for high-current applications. By convention, the XT60 female connector is installed on the battery side, while the XT60 male connector is attached to the device, such as a drone's power distribution board or an ESC.

5. How to remove an XT60 connector?

To safely disconnect the pair, firmly grip the plastic housings of both the XT60 male and XT60 female ends. Apply firm, even pressure to pull them straight apart without wiggling or twisting. Never pull by the wires, as this can break the solder joints and lead to equipment failure.

View full product details

XT60 Connectors – High-Quality Gold-Plated Connectivity Solutions

Looking for durable, high-quality XT60 connectors at an affordable price? Our XT60 connectors are designed to provide reliable, efficient, and safe connections for a wide range of applications. Measuring 3.5mm, these yellow connectors are built for ease of use, durability, and versatility, making them ideal for both hobbyists and professionals.

Whether you’re into drones, RC cars, battery charging, or DIY electronics, XT60 connectors are your go-to solution. Their innovative concave jacket design protects against water vapor, making them suitable for outdoor use and electronic speed controllers (ESC). Made with premium materials and gold-plated contacts, these connectors ensure stable, low-resistance connections even under challenging conditions.

Key Features

  • Gold-Plated Contacts: Ensures high conductivity, durability, and reliable performance.

  • Concave Jacket Design: Provides protection against water vapor and environmental exposure.

  • Durable Materials: Built to withstand repeated use in various conditions.

  • User-Friendly Design: Easy to install and ideal for DIY electronics projects.

  • Wide Compatibility: Suitable for drones, RC cars, LiPo batteries, ESCs, and other devices.

  • Skill Development Friendly: Perfect for both hobbyists and professionals.

XT60 Connector Soldering Guide

  1. Slide heat-shrink tubing onto the wire before soldering.

  2. Strip 4–6 mm of wire, twist the strands, and tin with solder.

  3. Pre-fill or tin the XT60 connector cup with solder.

  4. Insert the tinned wire into the connector cup and heat until solder flows.

  5. Let the joint cool, slide the heat-shrink over it, and shrink with heat.

  6. Verify polarity and ensure a firm, secure connection with no stray solder.

Applications

  • Battery charging

  • Connection with Electronic Speed Controllers (ESC)

  • Drones and RC vehicles

  • Lithium Polymer (LiPo) battery connections

  • DIY electronics and robotics projects
