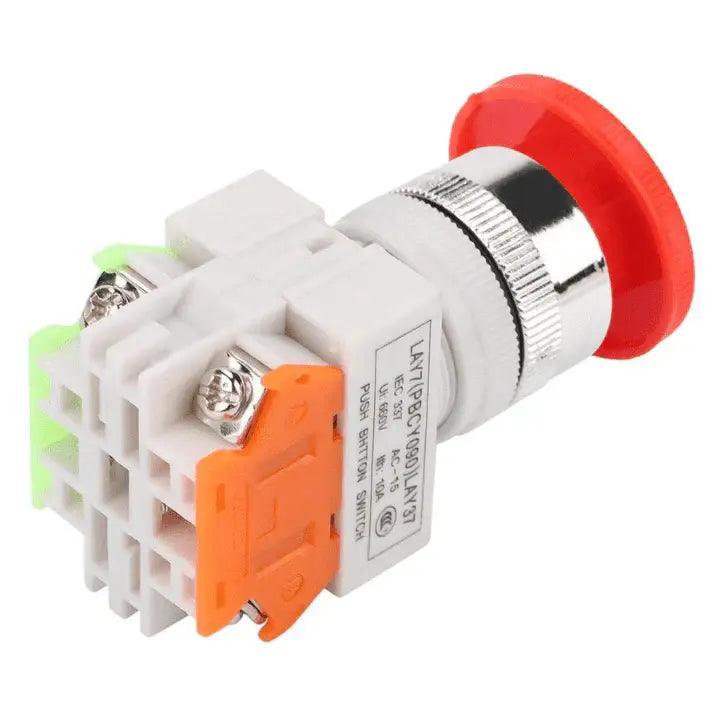

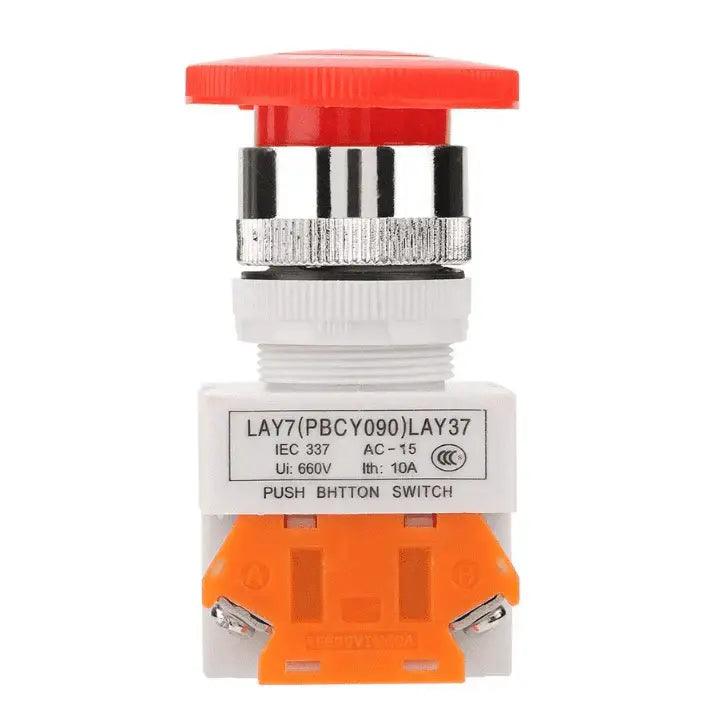

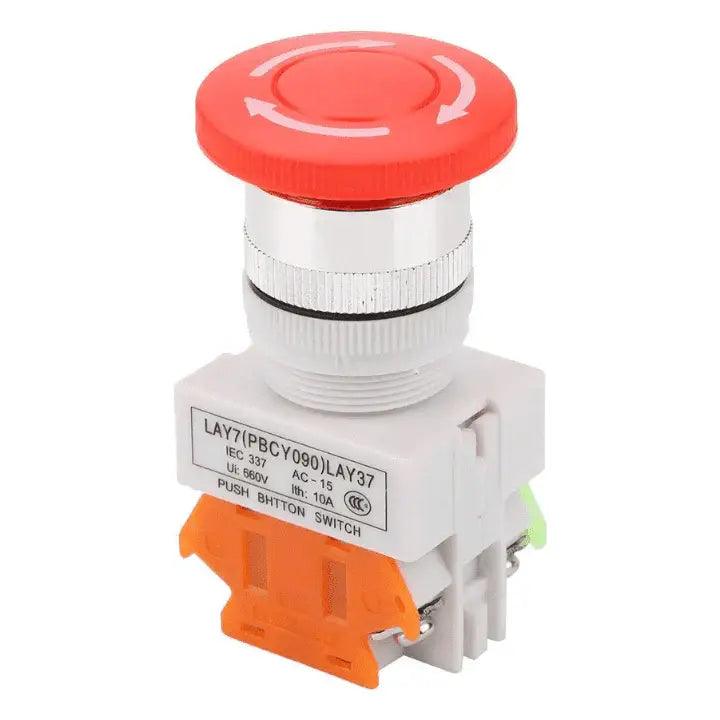

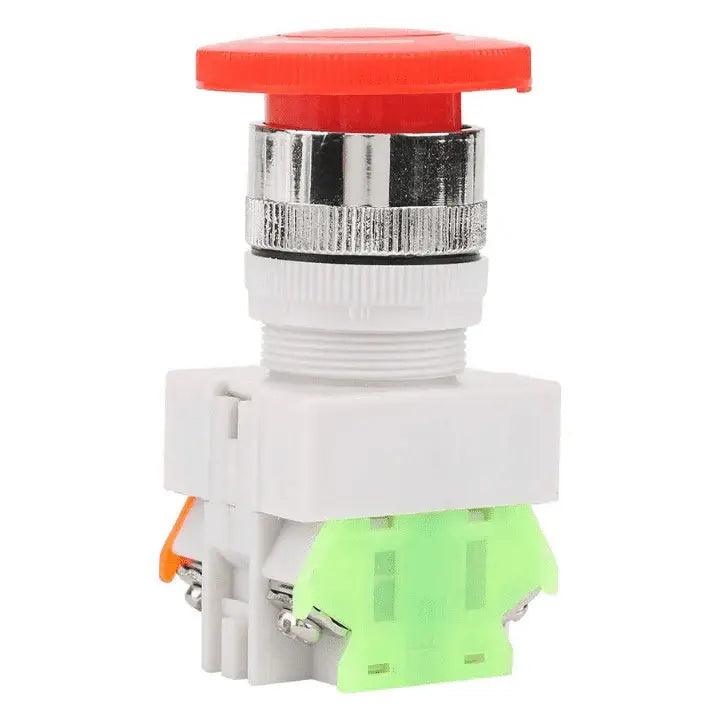

YWBL-WH Mushroom Emergency Stop Push Button Switch - 22MM

SKU: 3ZFYT03Q8D
The AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch is designed for use in lifts, elevators, CNC machines, and other systems requiring a latching self-lock emergency stop. Constructed from high-quality materials, this switch offers long-lasting durability. It features a built-in screw-type cable connection for secure wiring. To reset the switch, turn the button following the directional arrows—do not...
Rs. 119.00
Rs. 149.00 Rs. 119.00
Save Rs. 30
Sold out
Tax included. Shipping calculated at checkout.
Guaranteed safe & secure checkout

Shipping & Returns

Orders placed before 3 PM IST will be shipped on the same day (excluding Sundays and Public holidays) through our shipping partners. In rare cases, the pickup may get delayed during Public holidays / Bandh / Environmental disturbances.

Specifications

Specifications:

Operating Voltage: 220V
Operating Current: 5A
Rated Thermal Current: 10A
Contact Resistance: 20 Ω
Insulation Resistance: 20 MΩ
Maximum Rated Voltage: 440V
Panel Mount Hole Diameter: 22mm

Additional Resources

YWBL-WH Mushroom Emergency Stop Push Button Switch - 22MM.PDF

FAQ

1: What type of switch is the YWBL-WH Mushroom Push Button?

It is an emergency stop (E-Stop) push button switch with a large mushroom-shaped actuator for easy and quick operation.

2: What is the mounting size of this emergency stop switch?

The switch has a 22mm panel cut-out, making it compatible with standard control panels.

3: What applications is this switch suitable for?

It is widely used for safety control in industrial machines, robotics, conveyor systems, motor controls, and other emergency stop requirements.

4: How does the YWBL-WH push button operate?

It is a normally closed (NC) switch, which interrupts the circuit immediately when pressed, ensuring rapid power cut-off in emergency situations.

5: What are the key features of this emergency stop switch?

Features include a large red mushroom head for quick access, robust construction, easy panel mounting, and reliable operation in critical safety applications.

View full product details

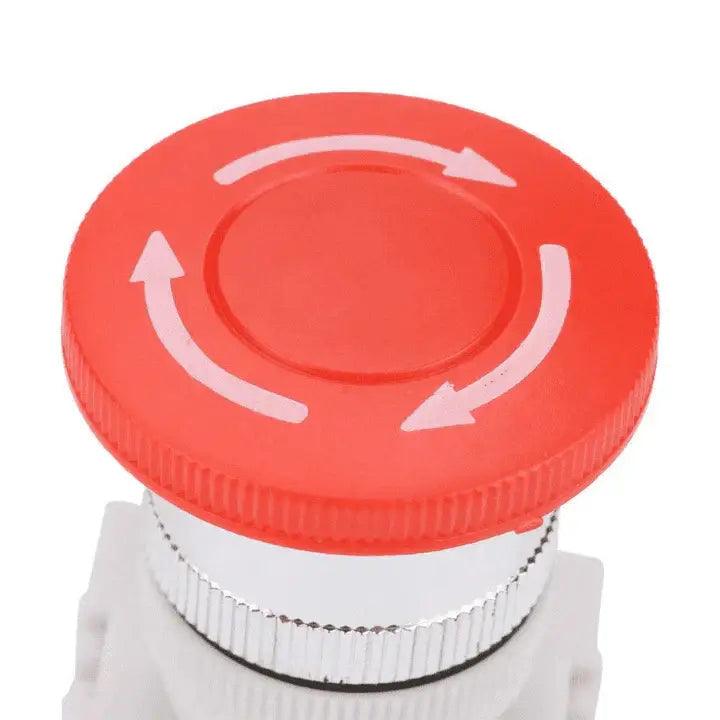

The AC 660V 10A LAY37 DPST Emergency Stop Push Button Switch is designed for use in lifts, elevators, CNC machines, and other systems requiring a latching self-lock emergency stop. Constructed from high-quality materials, this switch offers long-lasting durability. It features a built-in screw-type cable connection for secure wiring. To reset the switch, turn the button following the directional arrows—do not turn in the opposite direction.

Applications:

  • Electromagnetic starters
  • Contactors
  • Relays
  • Various automatic control electric circuits
