Sensors

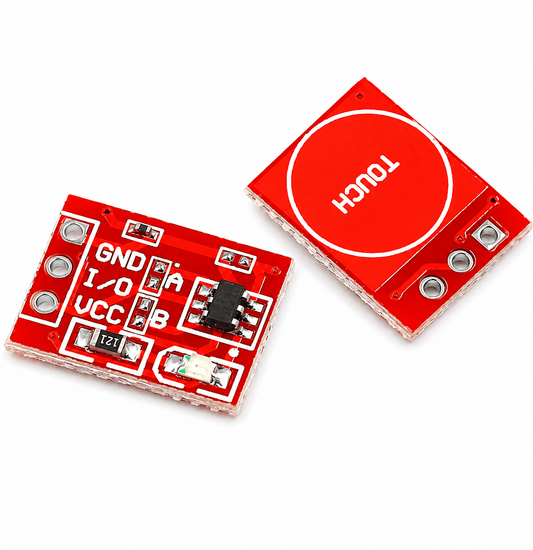

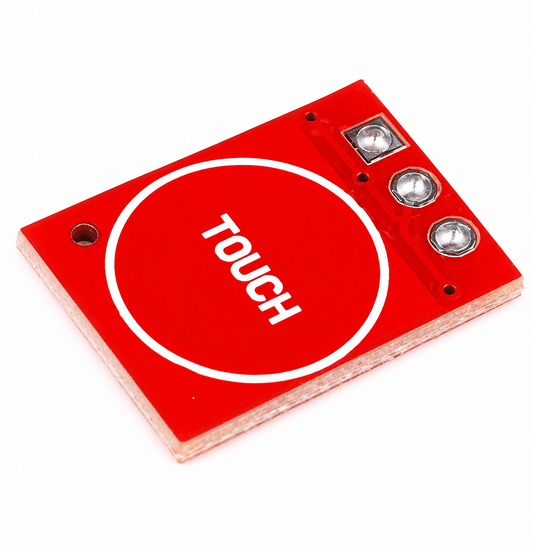

The TTP223 Capacitive Touch Sensor Module is a compact touch-sensitive input module designed to replace traditional mechanical push buttons. Based on the TTP223 capacitive touch sensing IC, the module detects the touch of a finger through changes in capacitance and generates a digital output signal. Unlike mechanical switches, the TTP223...

The KY-038 Small Microphone Sound Sensor Module is a compact audio detection module designed to sense sound levels in the surrounding environment. It features a high-sensitivity electret microphone and an LM393 comparator circuit that converts sound signals into both analog and digital outputs. The module can detect claps, voices, knocks,...

The KY-037 Microphone Sound Detection Module is a sensitive audio detection sensor designed to detect sound levels and acoustic signals in the surrounding environment. The module combines an electret microphone with an LM393 voltage comparator, providing both analog and digital outputs for sound monitoring and sound-triggered applications. The analog output...

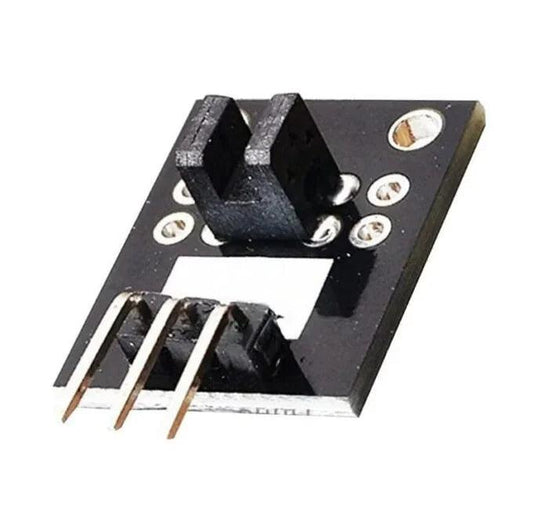

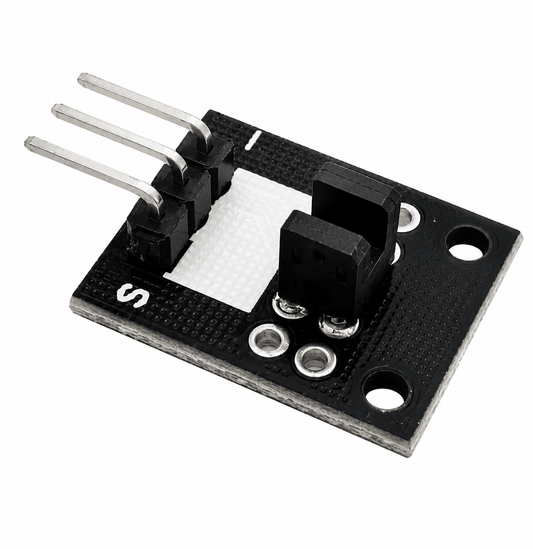

The KY-010 Photo Interrupter Sensor Module is an optical detection sensor designed to detect the presence, movement, or interruption of an object passing through its sensing slot. The module consists of an infrared LED emitter and a phototransistor receiver positioned opposite each other in a U-shaped housing. When an object...

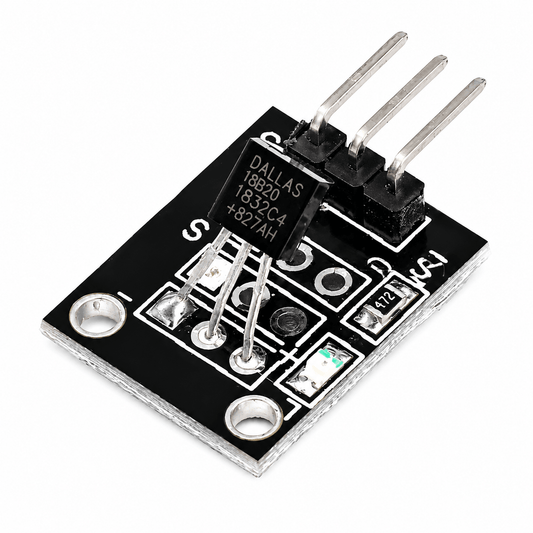

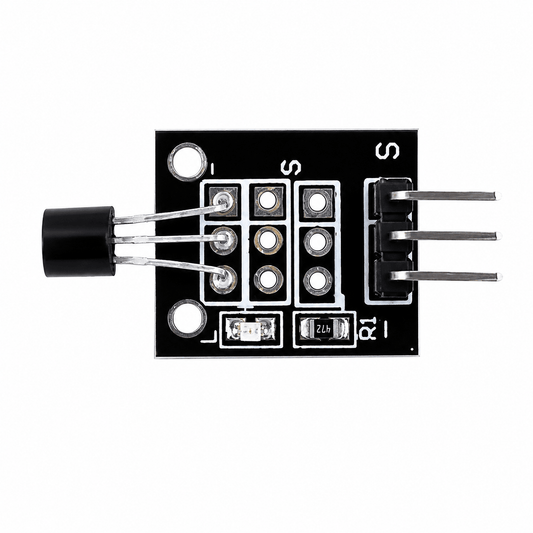

The KY-001 DS18B20 Temperature Sensor Module is a high-precision digital temperature sensing module based on the popular DS18B20 digital temperature sensor. It communicates using the 1-Wire protocol, allowing multiple sensors to operate on a single data line while requiring only one microcontroller pin for communication. The DS18B20 provides accurate temperature...

The KY-017 Mercury Tilt Switch Module is a simple orientation and motion detection module that uses a mercury tilt switch to detect changes in position or inclination. When the module is tilted beyond a certain angle, the mercury inside the switch flows and creates an electrical connection, changing the output...

The KY-020 Ball Switch Sensor Module is a simple motion and tilt detection module that uses an internal rolling metal ball switch to detect changes in orientation, vibration, or movement. When the module is tilted or moved beyond a specific angle, the internal ball makes or breaks contact, changing the...

The Linear Magnetic Hall Sensor Module is a magnetic field sensing module designed to measure the strength and polarity of magnetic fields using the Hall Effect principle. Unlike digital Hall sensors that only detect the presence or absence of a magnet, a linear Hall sensor provides an analog voltage output...

The Magic Cup Light Module is an interactive LED sensor module that demonstrates a unique lighting effect using a tilt switch and dual LEDs. When the module is tilted in one direction, one LED illuminates while the other turns off. Tilting the module in the opposite direction reverses the effect,...

The Hall Magnetic Sensor Module is a magnetic field detection module designed to sense the presence, absence, or proximity of magnetic fields using the Hall Effect principle. The module typically incorporates a Hall Effect sensor and an LM393 comparator, providing both digital and analog outputs for easy interfacing with microcontrollers...

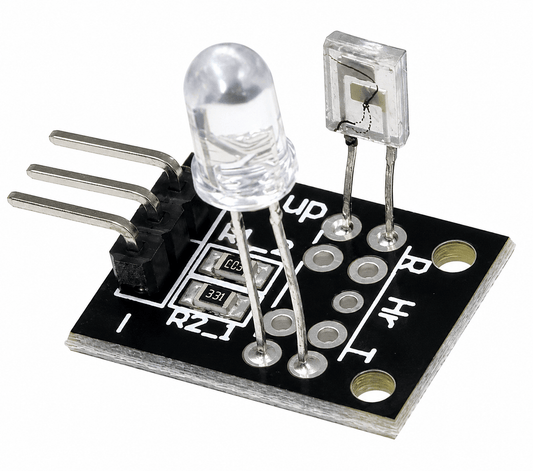

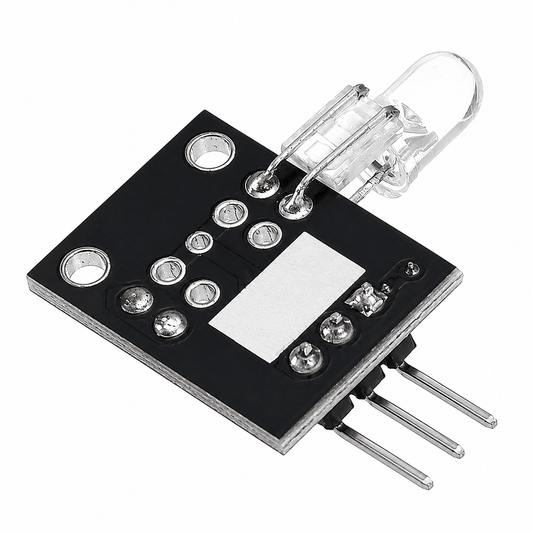

The Finger Heartbeat Detection Sensor Module is a compact biosensing module designed to measure heartbeats by detecting changes in blood volume within a finger using an infrared LED and photodetector. Based on the principle of photoplethysmography (PPG), the sensor monitors variations in blood flow caused by heart contractions and generates...

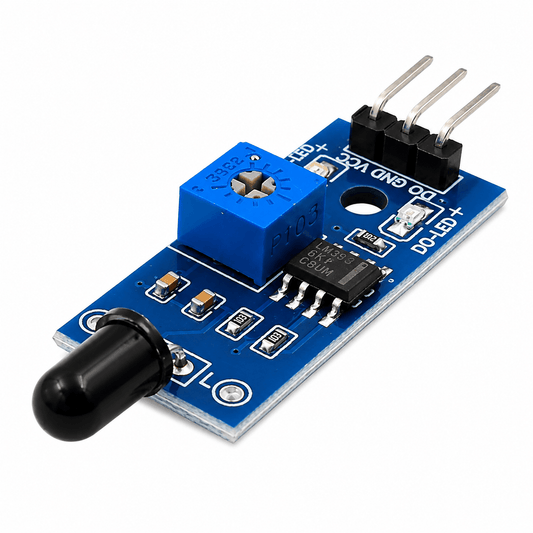

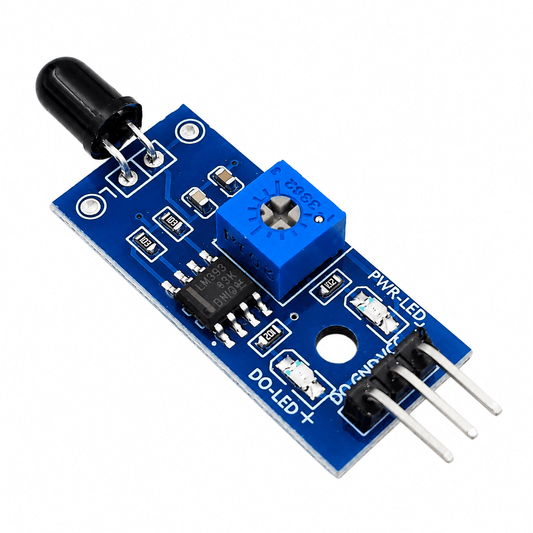

The IR Flame/Fire Sensor Module is a compact infrared detection module designed to identify flames and fire sources by sensing infrared light emitted in the wavelength range typically produced by flames. The module incorporates a highly sensitive IR photodiode along with a comparator circuit that provides both analog and digital...
